Actionneur pneumatique simple effet GS Heavy Duty acier au carbone

  • avantages
  • caractéristiques
  • matériaux
  • diagrammes et couples de démarrage
  • spécifications

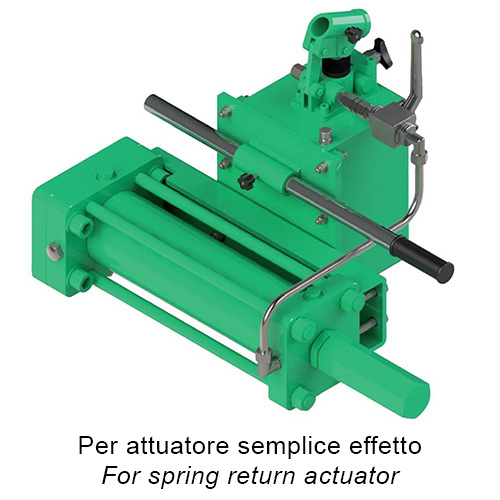

  • accessoires
  • documents

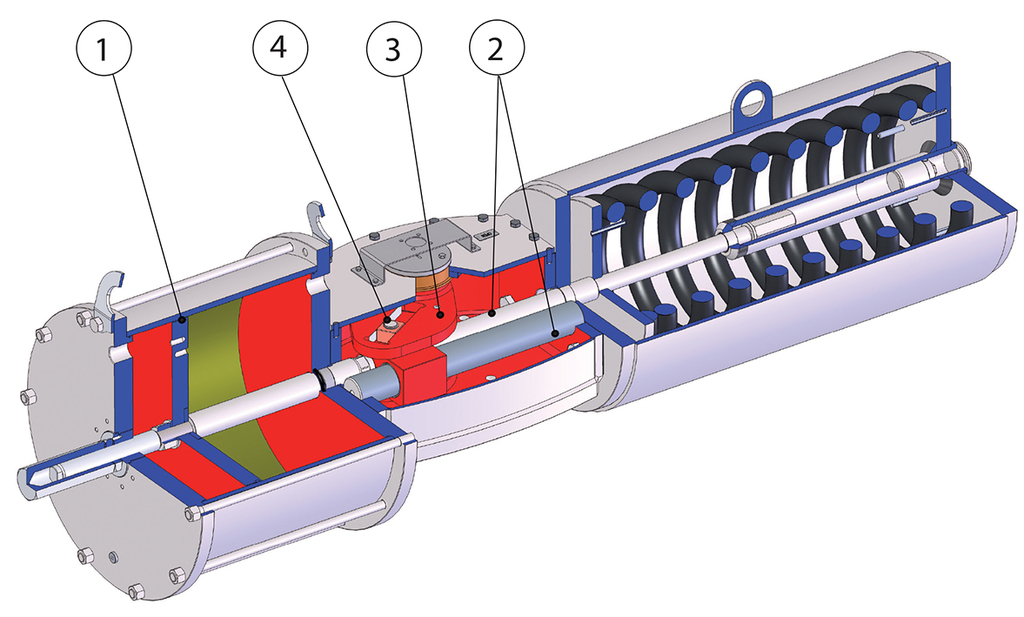

1 Bandes de glissement en PTFE remplies de graphite
Réduction du frottement entre piston et vérin
Évite que les bandes de glissement ne se collent au vérin, même après de longues périodes d’immobilisation
Réduit l’effet « stick-slip »

2 Tige et barre de guidage réalisées en acier chromé avec dureté d’environ 200 HB
Plus grande résistance à la corrosion
Réduction du frottement entre la tige, la barre de guidage et les douilles de guidage, ce qui réduit l’usure des pièces

3 Système de transformation du mouvement linéaire en mouvement rotatif séparé du fluide de commande de l’actionneur.
Possibilité d'alimenter l'actionneur avec des gaz techniques
Les atmosphères explosives sont évitées

4 Bielle-manivelle avec frottement de roulement (transformation du mouvement linéaire en mouvement de rotation par système sans engrenages).
Réduction du frottement entre le piston et l'arbre, ce qui réduit l'usure des pièces
Moment de torsion accru en phase d’ouverture et de fermeture

Douilles en bronze
Garantissent une usure moindre par rapport aux douilles réalisées dans d'autres matériaux.

Certificat ATEX
Permet une installation en présence d'un milieu potentiellement explosif.

Certifié jusqu'à SIL 3
Niveau élevé de sécurité fonctionnelle

Données techniques:
Couples nominaux: d’environ 2000 Nm à 30 000 Nm
Brides suivant DIN / ISO 5211, DIN 3337
Angle de rotation nominal: 90° avec réglage de la course -5° + 95°
Pression d'alimentation: de 3 bar à 8,5 bar (pour les couples délivrés, voir les tableaux)
Pour la version à double effet, le moment de torsion est directement proportionnel à la pression d'alimentation de l'actionneur
Pour la version à simple effet, le moment de torsion de rappel (absence d’alimentation dans l’actionneur) dépend uniquement de l'action du ressort, indépendamment de la pression d'alimentation
Réalisations disponibles: Double effet, rappel à ressort normalement fermé (NF), rappel à ressort normalement ouvert (NO)
Configurations du corps central: Bielle-manivelle symétrique (symmetrical) ou dissymétrique (canted)

Conditions de fonctionnement:
Plage de température - version standard: -20°C à + 80°C (Matériau garnitures: NBR)
Version spéciale: hautes températures de -20°C à + 150°C (Matériau garnitures: FKM)
Fluide d'alimentation: air comprimé filtré, pas nécessairement lubrifié, gaz inertes, gaz techniques
Pour des températures inférieures à 0°C, utilisez de l'air sec
En cas de lubrification, utiliser une huile non détergente compatible avec les matériaux internes de la version de l'actionneur utilisée

Normes de conception:
Conception conforme aux normes EN 15714-3, ISO 5211, ISO 12490

PosDescription
Matériaux
1Corps central
Acier au carbone
2Bielle-manivelle
Acier au carbone
3Douille bielle-manivelle
Bronzo
4Barre de guidage
Alliage d'acier (chromé)
5Palier de guidage
Bronze
6Vanne de purge (non montrée)
Laiton
7Bloc de guidage
Acier au carbone
8Goujon
Alliage d'acier
9Tige piston
Alliage d'acier (chromé)
10PistonAcier au carbone
11Bride  Acier au carbone
12Joint torique
NBR
13Vérin
Acier au carbone (nickelé)
14Douille tige piston
Acier+bronze+PTFE
15Garniture
NBR+polyuréthane
16Joint torique
NBR
17Bague de guidage
PTFE + graphite
18Joint torique
NBR
19Vis sans tête de réglage Alliage d'acier
20Vis sans tête de réglage
Alliage d'acier
21Ressort  Alliage d'acier
22Empilement ressorts
Acier au carbone
23Douille  Acier + bronze + PTFE
24Douille  Acier + bronze + PTFE
25Tige empilement ressorts
Alliage d'acier (chromé)

Simple effet normalement fermé - Tableau des couples (moments de torsion)

Numéro de modèle
Couple max. Nm
3 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.000





GHDP-085C-335A-C29.000





GHDP-085C-385A-C29.0003.8021.0011.1142.0001.2052.324
GHDP-085C-435A-C29.0005.5631.7042.0901.9961.2022.315
GHDP-085C-335A-C39.000





GHDP-085C-385A-C39.000





GHDP-085C-435A-C39.000





GHDP-085C-335A-C59.000





GHDP-085C-385A-C59.000





GHDP-085C-435A-C59.000





GHDP-085C-385A-C69.000





GHDP-085C-435A-C69.000





GHDP-100C-385A-C118.000





GHDP-100C-435A-C118.000





GHDP-100C-485A-C118.000





GHDP-100C-385A-C218.000





GHDP-100C-435A-C218.000





GHDP-100C-485A-C218.000





GHDP-100C-535A-C218.000





GHDP-100C-585A-C218.00010.1032.2112.2196.4173.8117.099
GHDP-100C-535A-C318.000





GHDP-100C-585A-C318.000





GHDP-100C-535A-C418.000





GHDP-100C-585A-C418.000





GHDP-130C-435A-C132.000





GHDP-130C-485A-C132.000





GHDP-130C-535A-C132.000





GHDP-130C-585A-C132.00012.4193.0553.2588.1385.01710.196
GHDP-130C-635A-C132.00016.5884.7455.5678.1655.03710.251
GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.000





GHDP-130C-485A-C232.000





GHDP-130C-535A-C232.000





GHDP-130C-585A-C232.000





GHDP-130C-635A-C232.00015.0833.3293.35210.1096.09211.756
GHDP-130C-485A-C532.000





GHDP-130C-535A-C532.000





GHDP-130C-585A-C532.000





GHDP-130C-635A-C532.000





GHDP-130C-685A-C532.00017.0754.4574.93110.8596.78014.156
GHDP-130C-735A-C532.00021.8376.3707.56910.8426.76714.121
GHDP-130C-535A-C632.000





GHDP-130C-585A-C632.000





GHDP-130C-635A-C632.000





GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.000






Numéro de modèle
Couple max. Nm
3 BAR SYMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.000





GHDP-085S-335A-C29.0001.4413933832.3361.1231.475
GHDP-085S-385A-C29.0002.4211.1381.4542.3261.1161.464
GHDP-085S-435A-C29.0003.5431.8482.6812.3211.1131.459
GHDP-085S-335A-C39.000





GHDP-085S-385A-C39.000





GHDP-085S-435A-C39.0002.6529249153.7821.8012.340
GHDP-085S-335A-C59.000





GHDP-085S-385A-C59.000





GHDP-085S-435A-C59.0002.2955445254.1052.0072.692
GHDP-085S-385A-C69.000





GHDP-085S-435A-C69.000





GHDP-100S-385A-C118.000





GHDP-100S-435A-C118.000





GHDP-100S-485A-C118.000





GHDP-100S-535A-C118.0005.8342.2812.3176.3152.7643.228
GHDP-100S-585A-C118.0007.6793.5114.3336.3272.7733.242
GHDP-100S-385A-C218.000





GHDP-100S-435A-C218.000





GHDP-100S-485A-C218.000





GHDP-100S-535A-C218.0004.5899989567.4413.4954.460
GHDP-100S-585A-C218.0006.4342.6942.9727.4543.5034.474
GHDP-100S-535A-C318.000





GHDP-100S-585A-C318.000





GHDP-100S-535A-C418.000





GHDP-100S-585A-C418.000





GHDP-130S-435A-C132.000





GHDP-130S-485A-C132.000





GHDP-130S-535A-C132.0005.4841.6691.6409.4664.6946.407
GHDP-130S-585A-C132.0007.9093.5544.2919.4834.7056.426
GHDP-130S-635A-C132.00010.5645.2537.1939.5154.7256.460
GHDP-130S-385A-C232.000





GHDP-130S-435A-C232.000





GHDP-130S-485A-C232.000





GHDP-130S-535A-C232.000





GHDP-130S-585A-C232.0006.9501.6401.58211.7255.6267.374
GHDP-130S-635A-C232.0009.6054.0404.48411.7575.6467.409
GHDP-130S-685A-C232.00012.4245.8767.56611.7385.6347.388
GHDP-130S-485A-C532.000





GHDP-130S-535A-C532.000





GHDP-130S-585A-C532.000





GHDP-130S-635A-C532.0008.0543.2223.36112.6866.4088.942
GHDP-130S-685A-C532.00010.8745.0816.44312.6686.3968.922
GHDP-130S-735A-C532.00013.9077.0109.75812.6476.3838.899
GHDP-130S-535A-C632.000





GHDP-130S-585A-C632.000





GHDP-130S-635A-C632.000





GHDP-130S-685A-C632.000





GHDP-130S-735A-C632.00011.9834.5884.56916.9438.17910.802



Numéro de modèle
Couple max. Nm
3,5 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.000





GHDP-085C-335A-C29.0003.0706967092.0081.2112.340
GHDP-085C-385A-C29.0004.8681.4291.7052.0001.2052.324
GHDP-085C-435A-C29.0006.9252.2412.8441.9961.2022.315
GHDP-085C-335A-C39.000





GHDP-085C-385A-C39.000





GHDP-085C-435A-C39.0005.5261.3361.4113.2541.9503.713
GHDP-085C-335A-C59.000





GHDP-085C-385A-C59.000





GHDP-085C-435A-C59.0004.9661.0941.1013.5262.1514.272
GHDP-085C-385A-C69.000





GHDP-085C-435A-C69.000





GHDP-100C-385A-C118.000





GHDP-100C-435A-C118.000





GHDP-100C-485A-C118.000





GHDP-100C-385A-C218.000





GHDP-100C-435A-C218.000





GHDP-100C-485A-C218.000





GHDP-100C-535A-C218.0009.6561.9761.9716.4063.8037.076
GHDP-100C-585A-C218.00013.0323.4443.8416.4173.8117.099
GHDP-100C-535A-C318.000





GHDP-100C-585A-C318.000





GHDP-100C-535A-C418.000





GHDP-100C-585A-C418.0009.8992.1141.6868.8815.36510.614
GHDP-130C-435A-C132.000





GHDP-130C-485A-C132.000





GHDP-130C-535A-C132.00011.8332.8082.9338.1245.00710.167
GHDP-130C-585A-C132.00016.2714.6185.3918.1385.01710.196
GHDP-130C-635A-C132.00021.1266.5448.0818.1655.03710.251
GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.000





GHDP-130C-485A-C232.000





GHDP-130C-535A-C232.000





GHDP-130C-585A-C232.00014.7653.1783.17610.0826.07311.701
GHDP-130C-635A-C232.00019.6215.2315.86510.1096.09211.756
GHDP-130C-485A-C532.000





GHDP-130C-535A-C532.000





GHDP-130C-585A-C532.000





GHDP-130C-635A-C532.00017.1864.5024.99210.8756.79214.189
GHDP-130C-685A-C532.00022.3566.5767.85610.8596.78014.156
GHDP-130C-735A-C532.00027.9178.77610.93710.8426.76714.121
GHDP-130C-535A-C632.000





GHDP-130C-585A-C632.000





GHDP-130C-635A-C632.000





GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.00024.8976.2206.69614.5638.80817.139

Numéro de modèle
Couple max. Nm
3,5 BAR SYMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.000





GHDP-085S-335A-C29.0001.9558359452.3361.1231.475
GHDP-085S-385A-C29.0003.1001.5692.1972.3261.1161.464
GHDP-085S-435A-C29.0004.4102.3923.6282.3211.1131.459
GHDP-085S-335A-C39.000





GHDP-085S-385A-C39.000





GHDP-085S-435A-C39.0003.5191.5641.8633.7821.8012.340
GHDP-085S-335A-C59.000





GHDP-085S-385A-C59.000





GHDP-085S-435A-C59.0003.1621.3291.4734.1052.0072.692
GHDP-085S-385A-C69.000





GHDP-085S-435A-C69.000





GHDP-100S-385A-C118.000





GHDP-100S-435A-C118.000





GHDP-100S-485A-C118.0005.4451.9081.8916.3112.7623.225
GHDP-100S-535A-C118.0007.3943.3274.0226.3152.7643.228
GHDP-100S-585A-C118.0009.5444.7046.3726.3272.7733.242
GHDP-100S-385A-C218.000





GHDP-100S-435A-C218.000





GHDP-100S-485A-C218.000





GHDP-100S-535A-C218.0006.1492.5012.6617.4413.4954.460
GHDP-100S-585A-C218.0008.2993.9115.0117.4543.5034.474
GHDP-100S-535A-C318.0005.5482.0311.4469.1394.3865.400
GHDP-100S-585A-C318.0007.5503.1863.3869.1394.3865.400
GHDP-100S-535A-C418.000





GHDP-100S-585A-C418.0006.3802.5112.25210.3635.1516.750
GHDP-130S-435A-C132.000





GHDP-130S-485A-C132.0004.9721.1241.0809.4624.6916.403
GHDP-130S-535A-C132.0007.5353.3103.8829.4664.6946.407
GHDP-130S-585A-C132.00010.3625.1256.9729.4834.7056.426
GHDP-130S-635A-C132.00013.4547.07410.3529.5154.7256.460
GHDP-130S-385A-C232.000





GHDP-130S-435A-C232.000





GHDP-130S-485A-C232.000





GHDP-130S-535A-C232.000





GHDP-130S-585A-C232.0009.4033.9054.26311.7255.6267.374
GHDP-130S-635A-C232.00012.4955.9227.64311.7575.6467.409
GHDP-130S-685A-C232.00015.7888.01111.24211.7385.6347.388
GHDP-130S-485A-C532.000





GHDP-130S-535A-C532.000





GHDP-130S-585A-C532.0007.8523.0813.14012.6556.3888.908
GHDP-130S-635A-C532.00010.9455.1266.52012.6866.4088.942
GHDP-130S-685A-C532.00014.2377.21810.11912.6686.3968.922
GHDP-130S-735A-C532.00017.7799.44513.99012.6476.3838.899
GHDP-130S-535A-C632.000





GHDP-130S-585A-C632.000





GHDP-130S-635A-C632.000





GHDP-130S-685A-C632.00012.3134.8344.93016.9638.19210.824
GHDP-130S-735A-C632.00015.8557.1988.80116.9438.17910.802



Numéro de modèle
Couple max. Nm
4 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.000





GHDP-085C-335A-C29.0003.8781.0321.1562.0081.2112.340
GHDP-085C-385A-C29.0005.9341.8512.2962.0001.2052.324
GHDP-085C-435A-C29.0008.2862.7753.5981.9961.2022.315
GHDP-085C-335A-C39.000





GHDP-085C-385A-C39.000





GHDP-085C-435A-C39.0006.8871.8932.1653.2541.9503.713
GHDP-085C-335A-C59.000





GHDP-085C-385A-C59.000





GHDP-085C-435A-C59.0006.3271.6671.8553.5262.1514.272
GHDP-085C-385A-C69.000





GHDP-085C-435A-C69.000





GHDP-100C-385A-C118.000





GHDP-100C-435A-C118.000





GHDP-100C-485A-C118.00010.5642.4162.4745.4533.0955.117
GHDP-100C-385A-C218.000





GHDP-100C-435A-C218.000





GHDP-100C-485A-C218.0008.8551.9791.7136.5433.8337.076
GHDP-100C-535A-C218.00012.1063.0663.3296.4063.8037.076
GHDP-100C-585A-C218.00015.6364.3325.1556.5433.8337.076
GHDP-100C-535A-C318.00010.8772.4482.1837.8514.6158.491
GHDP-100C-585A-C318.00014.4263.6803.9847.8514.6158.491
GHDP-100C-535A-C418.0009.0611.8231.2618.8815.36510.614
GHDP-100C-585A-C418.00012.6103.0553.0638.8815.36510.614
GHDP-130C-435A-C132.000





GHDP-130C-485A-C132.00010.4552.1732.1698.1205.00410.159
GHDP-130C-535A-C132.00015.0544.1304.7178.1245.00710.167
GHDP-130C-585A-C132.00020.1226.1487.5258.1385.01710.196
GHDP-130C-635A-C132.00025.6648.33210.5948.1655.03710.251
GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.000





GHDP-130C-485A-C232.000





GHDP-130C-535A-C232.000





GHDP-130C-585A-C232.00018.6174.8225.30910.0826.07311.701
GHDP-130C-635A-C232.00024.1587.0508.37910.1096.09211.756
GHDP-130C-485A-C532.000





GHDP-130C-535A-C532.000





GHDP-130C-585A-C532.00016.1824.0914.43610.8496.77214.134
GHDP-130C-635A-C532.00021.7246.3257.50610.8756.79214.189
GHDP-130C-685A-C532.00027.6368.66610.78110.8596.78014.156
GHDP-130C-735A-C532.00033.99711.16714.30410.8426.76714.121
GHDP-130C-535A-C632.000





GHDP-130C-585A-C632.000





GHDP-130C-635A-C632.000





GHDP-130C-685A-C632.00024.6166.1046.54114.5818.82117.175
GHDP-130C-735A-C632.00030.9778.68810.06414.5638.80817.139

Numéro de modèle
Couple max. Nm
4 BAR SYMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.000





GHDP-085S-335A-C29.0002.4691.1691.5072.3361.1231.475
GHDP-085S-385A-C29.0003.7791.9972.9392.3261.1161.464
GHDP-085S-435A-C29.0005.2772.9334.5762.3211.1131.459
GHDP-085S-335A-C39.000





GHDP-085S-385A-C39.0002.8881.1411.1733.7881.8052.345
GHDP-085S-435A-C39.0004.3862.1222.8103.7821.8012.340
GHDP-085S-335A-C59.000





GHDP-085S-385A-C59.0002.5327967844.1102.0102.698
GHDP-085S-435A-C59.0004.0291.8942.4214.1052.0072.692
GHDP-085S-385A-C69.000





GHDP-085S-435A-C69.0003.4781.3261.3205.0162.4353.238
GHDP-100S-385A-C118.000





GHDP-100S-435A-C118.0004.7461.1651.1276.3362.7793.252
GHDP-100S-485A-C118.0006.7272.8893.2936.3112.7623.225
GHDP-100S-535A-C118.0008.9554.3295.7286.3152.7643.228
GHDP-100S-585A-C118.00011.4105.8828.4116.3272.7733.242
GHDP-100S-385A-C218.000





GHDP-100S-435A-C218.000





GHDP-100S-485A-C218.0005.4821.9481.9327.4383.4924.456
GHDP-100S-535A-C218.0007.7103.5314.3677.4413.4954.460
GHDP-100S-585A-C218.00010.1655.0977.0507.4543.5034.474
GHDP-100S-535A-C318.0007.0102.8742.8639.1394.3865.400
GHDP-100S-585A-C318.0009.2974.1935.0799.1394.3865.400
GHDP-100S-535A-C418.0005.8402.1991.72910.3635.1516.750
GHDP-100S-585A-C418.0008.1273.5183.94510.3635.1516.750
GHDP-130S-435A-C132.000





GHDP-130S-485A-C132.0006.6582.7252.9239.4624.6916.403
GHDP-130S-535A-C132.0009.5874.6326.1259.4664.6946.407
GHDP-130S-585A-C132.00012.8156.6729.6539.4834.7056.426
GHDP-130S-635A-C132.00016.3448.88413.5119.5154.7256.460
GHDP-130S-385A-C232.000





GHDP-130S-435A-C232.000





GHDP-130S-485A-C232.000





GHDP-130S-535A-C232.0008.6283.3693.41611.7085.6157.356
GHDP-130S-585A-C232.00011.8565.5116.94411.7255.6267.374
GHDP-130S-635A-C232.00015.3857.75710.80211.7575.6467.409
GHDP-130S-685A-C232.00019.15110.12614.91811.7385.6347.388
GHDP-130S-485A-C532.000





GHDP-130S-535A-C532.0007.0772.3222.29312.6386.3778.889
GHDP-130S-585A-C532.00010.3054.7145.82112.6556.3888.908
GHDP-130S-635A-C532.00013.8356.9649.67912.6866.4088.942
GHDP-130S-685A-C532.00017.6009.33313.79512.6686.3968.922
GHDP-130S-735A-C532.00021.65111.86818.22312.6476.3838.899
GHDP-130S-535A-C632.000





GHDP-130S-585A-C632.000





GHDP-130S-635A-C632.00011.9114.5124.49016.9828.20410.845
GHDP-130S-685A-C632.00015.6777.0828.60616.9638.19210.824
GHDP-130S-735A-C632.00019.7289.67713.03416.9438.17910.802


Numéro de modèle
Couple max. Nm
4,5 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.000





GHDP-085C-335A-C29.0004.7431.3211.5892.0821.2462.406
GHDP-085C-385A-C29.0006.9252.0782.6962.0821.2462.406
GHDP-085C-435A-C29.000





GHDP-085C-335A-C39.000





GHDP-085C-385A-C39.0005.8111.4401.4943.4272.0123.709
GHDP-085C-435A-C39.0008.2952.3022.7553.4272.0123.709
GHDP-085C-335A-C59.000





GHDP-085C-385A-C59.000





GHDP-085C-435A-C59.0007.8672.1542.5373.6702.1904.210
GHDP-085C-385A-C69.000





GHDP-085C-435A-C69.0006.9971.6311.5414.7832.8175.227
GHDP-100C-385A-C118.000





GHDP-100C-435A-C118.0009.0532.0401.8135.6273.1695.189
GHDP-100C-485A-C118.00012.3323.1783.4785.6273.1695.189
GHDP-100C-385A-C218.000





GHDP-100C-435A-C218.000





GHDP-100C-485A-C218.00010.7192.6252.6596.5433.8337.076
GHDP-100C-535A-C218.00014.3553.8874.5046.5433.8337.076
GHDP-100C-585A-C218.000





GHDP-100C-535A-C318.00013.1443.2353.3347.8514.6158.491
GHDP-100C-585A-C318.00017.1374.6205.3607.8514.6158.491
GHDP-100C-535A-C418.00011.3292.6102.4128.8815.36510.614
GHDP-100C-585A-C418.00015.3213.9954.4398.8815.36510.614
GHDP-130C-435A-C132.000





GHDP-130C-485A-C132.000





GHDP-130C-535A-C132.000





GHDP-130C-585A-C132.000





GHDP-130C-635A-C132.000





GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.000





GHDP-130C-485A-C232.000





GHDP-130C-535A-C232.000





GHDP-130C-585A-C232.000





GHDP-130C-635A-C232.000





GHDP-130C-485A-C532.000





GHDP-130C-535A-C532.000





GHDP-130C-585A-C532.000





GHDP-130C-635A-C532.000





GHDP-130C-685A-C532.000





GHDP-130C-735A-C532.000





GHDP-130C-535A-C632.000





GHDP-130C-585A-C632.000





GHDP-130C-635A-C632.000





GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.000






Numéro de modèle
Couple max. Nm
4,5 BAR SYMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.0001.7367157192.3571.1361.498
GHDP-085S-335A-C29.0003.0571.4771.9992.3361.1231.475
GHDP-085S-385A-C29.0004.4632.2883.3622.3261.1161.464
GHDP-085S-435A-C29.0006.0643.2124.9142.3211.1131.459
GHDP-085S-335A-C39.0002.3398395533.7971.8112.356
GHDP-085S-385A-C39.0003.7451.6501.9163.7881.8052.345
GHDP-085S-435A-C39.0005.3462.5743.4683.7821.8012.340
GHDP-085S-335A-C59.000





GHDP-085S-385A-C59.0003.4681.4911.6484.1102.0102.698
GHDP-085S-435A-C59.0005.0702.4153.2004.1052.0072.692
GHDP-085S-385A-C69.000





GHDP-085S-435A-C69.0006.9382.5293.1815.0162.4353.238
GHDP-100S-385A-C118.000





GHDP-100S-435A-C118.0005.8342.3912.3796.3362.7793.252
GHDP-100S-485A-C118.0007.9483.6104.4276.3112.7623.225
GHDP-100S-535A-C118.00010.2914.9626.6986.3152.7643.228
GHDP-100S-585A-C118.00012.8646.4469.1926.3152.7643.228
GHDP-100S-385A-C218.000





GHDP-100S-435A-C218.0004.7941.7911.3717.4633.5084.483
GHDP-100S-485A-C218.0006.9083.0103.4197.4383.4924.456
GHDP-100S-535A-C218.0009.2514.3625.6907.4413.4954.460
GHDP-100S-585A-C218.00011.8245.8468.1847.4543.5034.474
GHDP-100S-535A-C318.0008.4713.7174.2799.1394.3865.400
GHDP-100S-585A-C318.00011.0445.2016.7739.1394.3865.400
GHDP-100S-535A-C418.0007.3013.0423.14510.3635.1516.750
GHDP-100S-585A-C418.0009.8744.5265.63910.3635.1516.750
GHDP-130S-435A-C132.000





GHDP-130S-485A-C132.000





GHDP-130S-535A-C132.000





GHDP-130S-585A-C132.000





GHDP-130S-635A-C132.000





GHDP-130S-385A-C232.000





GHDP-130S-435A-C232.000





GHDP-130S-485A-C232.000





GHDP-130S-535A-C232.000





GHDP-130S-585A-C232.000





GHDP-130S-635A-C232.000





GHDP-130S-685A-C232.000





GHDP-130S-485A-C532.000





GHDP-130S-535A-C532.000





GHDP-130S-585A-C532.000





GHDP-130S-635A-C532.000





GHDP-130S-685A-C532.000





GHDP-130S-735A-C532.000





GHDP-130S-535A-C632.000





GHDP-130S-585A-C632.000





GHDP-130S-635A-C632.000





GHDP-130S-685A-C632.000





GHDP-130S-735A-C632.000








Numéro de modèle
Couple max. Nm
5 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.0003.0937067222.0261.2242.378
GHDP-085C-335A-C29.0005.4921.6762.0512.0081.2112.340
GHDP-085C-385A-C29.0008.0672.6893.4772.0001.2052.324
GHDP-085C-435A-C29.000





GHDP-085C-335A-C39.000





GHDP-085C-385A-C39.0006.6681.8052.0443.2581.9533.722
GHDP-085C-435A-C39.000





GHDP-085C-335A-C59.000





GHDP-085C-385A-C59.0006.1081.5771.7333.5302.1544.281
GHDP-085C-435A-C59.0009.0492.7543.3633.5262.1514.272
GHDP-085C-385A-C69.000





GHDP-085C-435A-C69.0008.1832.1942.4694.3102.6175.137
GHDP-100C-385A-C118.0007.3041.4339255.6273.1695.189
GHDP-100C-435A-C118.00010.6922.4722.5455.4743.1105.160
GHDP-100C-485A-C118.00014.6134.3754.7075.4633.1515.122
GHDP-100C-385A-C218.000





GHDP-100C-435A-C218.0008.9382.0071.7556.5433.8337.076
GHDP-100C-485A-C218.00012.6363.2833.6226.4033.8017.070
GHDP-100C-535A-C218.00016.6224.6745.6556.5433.8337.076
GHDP-100C-585A-C218.000





GHDP-100C-535A-C318.00015.4124.0224.4857.8514.6158.491
GHDP-100C-585A-C318.000





GHDP-100C-535A-C418.00013.5963.3973.5638.8815.36510.614
GHDP-100C-585A-C418.000





GHDP-130C-435A-C132.00010.6242.2652.2638.1485.02410.216
GHDP-130C-485A-C132.00015.7504.4095.1028.1205.00410.159
GHDP-130C-535A-C132.00021.4966.6918.2868.1245.00710.167
GHDP-130C-585A-C132.00027.8259.18011.7928.1385.01710.196
GHDP-130C-635A-C132.00034.74011.89215.6228.1655.03710.251
GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.000





GHDP-130C-485A-C232.00014.2442.8942.88710.0646.05911.664
GHDP-130C-535A-C232.00019.9915.3816.07010.0686.06211.672
GHDP-130C-585A-C232.00026.3207.9089.57610.0826.07311.701
GHDP-130C-635A-C232.00033.23410.63713.40710.1096.09211.756
GHDP-130C-485A-C532.000





GHDP-130C-535A-C532.00017.5564.6525.19710.8346.76114.105
GHDP-130C-585A-C532.00023.8857.1838.70310.8496.77214.134
GHDP-130C-635A-C532.00030.8009.91112.53410.8756.79214.189
GHDP-130C-685A-C532.000





GHDP-130C-735A-C532.000





GHDP-130C-535A-C632.000





GHDP-130C-585A-C632.00020.8654.4664.46314.5708.81317.153
GHDP-130C-635A-C632.00027.7807.4008.29314.5968.83317.207
GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.000






Numéro de modèle
Couple max. Nm
5 BAR SYMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.0001.9708459612.3571.1361.498
GHDP-085S-335A-C29.0003.4981.8202.6312.3361.1231.475
GHDP-085S-385A-C29.0005.1372.8464.4232.3261.1161.464
GHDP-085S-435A-C29.0007.0104.0146.4712.3211.1131.459
GHDP-085S-335A-C39.0002.8261.1201.0253.7971.8112.356
GHDP-085S-385A-C39.0004.2462.0332.6583.7881.8052.345
GHDP-085S-435A-C39.0006.1203.2164.7053.7821.8012.340
GHDP-085S-335A-C59.0002.2504964764.1202.0162.708
GHDP-085S-385A-C59.0003.8901.8052.2684.1102.0102.698
GHDP-085S-435A-C59.0005.7632.9924.3164.1052.0072.692
GHDP-085S-385A-C69.0003.3381.1781.1675.0212.4383.243
GHDP-085S-435A-C69.0005.2112.4793.2155.0162.4353.238
GHDP-100S-385A-C118.0004.5809889466.3422.7833.259
GHDP-100S-435A-C118.0006.8092.9443.3826.3362.7793.252
GHDP-100S-485A-C118.0009.2924.5446.0966.3112.7623.225
GHDP-100S-535A-C118.00012.0766.3019.1396.3152.7643.228
GHDP-100S-585A-C118.000





GHDP-100S-385A-C218.000





GHDP-100S-435A-C218.0005.5642.0352.0217.4633.5084.483
GHDP-100S-485A-C218.0008.0473.7484.7357.4383.4924.456
GHDP-100S-535A-C218.00010.8315.5177.7787.4413.4954.460
GHDP-100S-585A-C218.00013.8967.44311.1297.4543.5034.474
GHDP-100S-535A-C318.0009.9324.5605.6959.1394.3865.400
GHDP-100S-585A-C318.00012.7916.2098.4669.1394.3865.400
GHDP-100S-535A-C418.0008.7623.8854.56110.3635.1516.750
GHDP-100S-585A-C418.00011.6215.5347.33210.3635.1516.750
GHDP-130S-435A-C132.0006.7662.7993.0419.4954.7126.439
GHDP-130S-485A-C132.00010.0304.9146.6099.4624.6916.403
GHDP-130S-535A-C132.00013.6907.22210.6109.4664.6946.407
GHDP-130S-585A-C132.00017.7219.74415.0169.4834.7056.426
GHDP-130S-635A-C132.00022.12512.49219.8299.5154.7256.460
GHDP-130S-385A-C232.000





GHDP-130S-435A-C232.000





GHDP-130S-485A-C232.0009.0713.6793.90011.7045.6127.351
GHDP-130S-535A-C232.00012.7316.0727.90111.7085.6157.356
GHDP-130S-585A-C232.00016.7628.62612.30711.7255.6267.374
GHDP-130S-635A-C232.00021.16611.38917.12011.7575.6467.409
GHDP-130S-685A-C232.00025.87714.33422.27111.7385.6347.388
GHDP-130S-485A-C532.0007.5212.7932.77712.6336.3748.884
GHDP-130S-535A-C532.00011.1805.2776.77812.6386.3778.889
GHDP-130S-585A-C532.00015.2117.83211.18412.6556.3888.908
GHDP-130S-635A-C532.00019.61510.59515.99712.6866.4088.942
GHDP-130S-685A-C532.00024.32713.53921.14712.6686.3968.922
GHDP-130S-735A-C532.00029.39516.70026.68812.6476.3838.899
GHDP-130S-535A-C632.000





GHDP-130S-585A-C632.00013.2885.5055.99416.9508.18410.810
GHDP-130S-635A-C632.00017.6918.37910.80816.9828.20410.845
GHDP-130S-685A-C632.00022.40311.37015.95816.9638.19210.824
GHDP-130S-735A-C632.00027.47214.55721.49816.9438.17910.802



Numéro de modèle
Couple max. Nm
5,5 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.0003.6579421.0342.0261.2242.378
GHDP-085C-335A-C29.0006.2991.9952.4982.0081.2112.340
GHDP-085C-385A-C29.0009.1333.1074.0672.0001.2052.324
GHDP-085C-435A-C29.000





GHDP-085C-335A-C39.0004.9011.0641.0653.2661.9593.738
GHDP-085C-385A-C39.0007.7342.2322.6343.2581.9533.722
GHDP-085C-435A-C39.000





GHDP-085C-335A-C59.000





GHDP-085C-385A-C59.0007.1752.0082.3243.5302.1544.281
GHDP-085C-435A-C59.000





GHDP-085C-385A-C69.0006.3091.4121.4304.3152.6205.146
GHDP-085C-435A-C69.000





GHDP-100C-385A-C118.0008.4781.8411.5215.6273.1695.189
GHDP-100C-435A-C118.00012.3123.1513.4435.4743.1105.160
GHDP-100C-485A-C118.00016.0594.4725.3705.6273.1695.189
GHDP-100C-385A-C218.000





GHDP-100C-435A-C218.00010.3572.3262.3606.4243.8177.114
GHDP-100C-485A-C218.000





GHDP-100C-535A-C218.000





GHDP-100C-585A-C218.000





GHDP-100C-535A-C318.000





GHDP-100C-585A-C318.000





GHDP-100C-535A-C418.00015.8634.1834.7148.8815.36510.614
GHDP-100C-585A-C418.000





GHDP-130C-435A-C132.00012.7543.1943.4438.1485.02410.216
GHDP-130C-485A-C132.00018.3975.4656.5698.1205.00410.159
GHDP-130C-535A-C132.00024.7187.95910.0708.1245.00710.167
GHDP-130C-585A-C132.00031.67710.69113.9258.1385.01710.196
GHDP-130C-635A-C132.000





GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.000





GHDP-130C-485A-C232.00016.8914.1094.35410.0646.05911.664
GHDP-130C-535A-C232.00023.2126.6737.85510.0686.06211.672
GHDP-130C-585A-C232.00030.1719.43111.71010.0826.07311.701
GHDP-130C-635A-C232.000





GHDP-130C-485A-C532.00014.4573.3673.48010.8306.75814.097
GHDP-130C-535A-C532.00020.7775.9486.98210.8346.76114.105
GHDP-130C-585A-C532.00027.7378.70510.83710.8496.77214.134
GHDP-130C-635A-C532.000





GHDP-130C-685A-C532.000





GHDP-130C-735A-C532.000





GHDP-130C-535A-C632.000





GHDP-130C-585A-C632.00024.7176.1456.59614.5708.81317.153
GHDP-130C-635A-C632.00032.3189.22410.80714.5968.83317.207
GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.000






Numéro de modèle
Couple max. Nm
5,5 BAR SYMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.0002.3291.0791.3542.3571.1361.498
GHDP-085S-335A-C29.0004.0122.1423.1932.3361.1231.475
GHDP-085S-385A-C29.0005.8163.2705.1662.3261.1161.464
GHDP-085S-435A-C29.0007.8774.5547.4182.3211.1131.459
GHDP-085S-335A-C39.0003.1211.3011.4283.7971.8112.356
GHDP-085S-385A-C39.0004.9252.4643.4003.7881.8052.345
GHDP-085S-435A-C39.0006.9863.7605.6533.7821.8012.340
GHDP-085S-335A-C59.0002.7641.0431.0384.1202.0162.708
GHDP-085S-385A-C59.0004.5692.2383.0104.1102.0102.698
GHDP-085S-435A-C59.0006.6303.5365.2634.1052.0072.692
GHDP-085S-385A-C69.0004.0171.7031.9105.0212.4383.243
GHDP-085S-435A-C69.0006.0783.0304.1625.0162.4353.238
GHDP-100S-385A-C118.0005.3881.8481.8296.3422.7833.259
GHDP-100S-435A-C118.0007.8413.6164.5106.3362.7793.252
GHDP-100S-485A-C118.00010.5745.3557.4986.3112.7623.225
GHDP-100S-535A-C118.00013.6367.28010.8446.3152.7643.228
GHDP-100S-585A-C118.000





GHDP-100S-385A-C218.000





GHDP-100S-435A-C218.0006.5962.8023.1497.4633.5084.483
GHDP-100S-485A-C218.0009.3294.5676.1377.4383.4924.456
GHDP-100S-535A-C218.00012.3916.4999.4847.4413.4954.460
GHDP-100S-585A-C218.00015.3187.86211.5717.4413.4954.460
GHDP-100S-535A-C318.00011.3935.4037.1119.1394.3865.400
GHDP-100S-585A-C318.00014.5387.21710.1599.1394.3865.400
GHDP-100S-535A-C418.00010.2234.7285.97710.3635.1516.750
GHDP-100S-585A-C418.00013.3686.5429.02510.3635.1516.750
GHDP-130S-435A-C132.0008.1223.6934.5249.4954.7126.439
GHDP-130S-485A-C132.00011.7165.9818.4529.4624.6916.403
GHDP-130S-535A-C132.00015.7428.50712.8529.4664.6946.407
GHDP-130S-585A-C132.00020.17411.27517.6979.4834.7056.426
GHDP-130S-635A-C132.00025.01514.29322.9889.5154.7256.460
GHDP-130S-385A-C232.000





GHDP-130S-435A-C232.0007.1631.8671.81511.7375.6347.387
GHDP-130S-485A-C232.00010.7574.8005.74311.7045.6127.351
GHDP-130S-535A-C232.00014.7837.37610.14311.7085.6157.356
GHDP-130S-585A-C232.00019.21510.16614.98811.7255.6267.374
GHDP-130S-635A-C232.00024.05613.19620.28011.7575.6467.409
GHDP-130S-685A-C232.00029.24116.43225.94711.7385.6347.388
GHDP-130S-485A-C532.0009.2073.9984.62012.6336.3748.884
GHDP-130S-535A-C532.00013.2326.5839.02012.6386.3778.889
GHDP-130S-585A-C532.00017.6649.37313.86512.6556.3888.908
GHDP-130S-635A-C532.00022.50512.40219.15612.6866.4088.942
GHDP-130S-685A-C532.00027.69015.63724.82412.6686.3968.922
GHDP-130S-735A-C532.00033.26819.11130.92012.6476.3838.899
GHDP-130S-535A-C632.00011.3083.8713.83116.9338.17310.792
GHDP-130S-585A-C632.00015.7417.1238.67616.9508.18410.810
GHDP-130S-635A-C632.00020.58210.21913.96716.9828.20410.845
GHDP-130S-685A-C632.00025.76613.48719.63416.9638.19210.824
GHDP-130S-735A-C632.00031.34416.98225.73116.9438.17910.802


Numéro de modèle
Couple max. Nm
6 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.0004.2211.1711.3472.0261.2242.378
GHDP-085C-335A-C29.0007.1072.3122.9452.0081.2112.340
GHDP-085C-385A-C29.000





GHDP-085C-435A-C29.000





GHDP-085C-335A-C39.0005.7081.4121.5123.2661.9593.738
GHDP-085C-385A-C39.0008.8012.6563.2253.2581.9533.722
GHDP-085C-435A-C39.000





GHDP-085C-335A-C59.0005.1481.1751.2023.5382.1604.298
GHDP-085C-385A-C59.0008.2412.4342.9153.5302.1544.281
GHDP-085C-435A-C59.000





GHDP-085C-385A-C69.0007.3751.8642.0214.3152.6205.146
GHDP-085C-435A-C69.000





GHDP-100C-385A-C118.0009.7302.0162.0125.4793.1145.171
GHDP-100C-435A-C118.00013.9323.8094.3405.4743.1105.160
GHDP-100C-485A-C118.000





GHDP-100C-385A-C218.0008.0381.6951.2986.5433.8337.076
GHDP-100C-435A-C218.00011.9773.0133.2576.4243.8177.114
GHDP-100C-485A-C218.000





GHDP-100C-535A-C218.000





GHDP-100C-585A-C218.000





GHDP-100C-535A-C318.000





GHDP-100C-585A-C318.000





GHDP-100C-535A-C418.000





GHDP-100C-585A-C418.000





GHDP-130C-435A-C132.00014.8844.0614.6238.1485.02410.216
GHDP-130C-485A-C132.00021.0446.5128.0358.1205.00410.159
GHDP-130C-535A-C132.00027.9399.22511.8548.1245.00710.167
GHDP-130C-585A-C132.000





GHDP-130C-635A-C132.000





GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.000





GHDP-130C-485A-C232.00019.5395.1985.82010.0646.05911.664
GHDP-130C-535A-C232.00026.4337.9539.63910.0686.06211.672
GHDP-130C-585A-C232.00034.02310.94713.84310.0826.07311.701
GHDP-130C-635A-C232.000





GHDP-130C-485A-C532.00017.1044.4694.94710.8306.75814.097
GHDP-130C-535A-C532.00023.9997.2288.76610.8346.76114.105
GHDP-130C-585A-C532.00031.58810.22112.97010.8496.77214.134
GHDP-130C-635A-C532.000





GHDP-130C-685A-C532.000





GHDP-130C-735A-C532.000





GHDP-130C-535A-C632.00020.9794.5284.52614.5568.80317.123
GHDP-130C-585A-C632.00028.5687.7198.73014.5708.81317.153
GHDP-130C-635A-C632.000





GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.000






Numéro de modèle
Couple max. Nm
6 BAR SYMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.0002.6881.3081.7462.3571.1361.498
GHDP-085S-335A-C29.0004.5262.4643.7552.3361.1231.475
GHDP-085S-385A-C29.0006.4953.6935.9082.3261.1161.464
GHDP-085S-435A-C29.0008.7445.0938.3662.3211.1131.459
GHDP-085S-335A-C39.0003.6351.6401.9903.7971.8112.356
GHDP-085S-385A-C39.0005.6052.8934.1423.7881.8052.345
GHDP-085S-435A-C39.0007.8534.3026.6003.7821.8012.340
GHDP-085S-335A-C59.0003.2781.4061.6004.1202.0162.708
GHDP-085S-385A-C59.0005.2482.6683.7534.1102.0102.698
GHDP-085S-435A-C59.0007.4974.0796.2114.1052.0072.692
GHDP-085S-385A-C69.0004.6962.1482.6525.0212.4383.243
GHDP-085S-435A-C69.0006.9453.5775.1105.0162.4353.238
GHDP-100S-385A-C118.0006.1962.5332.7136.3422.7833.259
GHDP-100S-435A-C118.0008.8724.2775.6386.3362.7793.252
GHDP-100S-485A-C118.00011.8576.1638.8996.3112.7623.225
GHDP-100S-535A-C118.000





GHDP-100S-585A-C118.000





GHDP-100S-385A-C218.0004.9511.3831.3527.4693.5124.490
GHDP-100S-435A-C218.0007.6273.4784.2777.4633.5084.483
GHDP-100S-485A-C218.00010.6125.3797.5397.4383.4924.456
GHDP-100S-535A-C218.00013.9517.47711.1897.4413.4954.460
GHDP-100S-585A-C218.00017.0658.87013.2647.4413.4954.460
GHDP-100S-535A-C318.00012.8546.2468.5289.1394.3865.400
GHDP-100S-585A-C318.00016.2858.22511.8539.1394.3865.400
GHDP-100S-535A-C418.00011.6845.5717.39410.3635.1516.750
GHDP-100S-585A-C418.00015.1157.55010.71910.3635.1516.750
GHDP-130S-435A-C132.0009.4784.5636.0069.4954.7126.439
GHDP-130S-485A-C132.00013.4027.04110.2959.4624.6916.403
GHDP-130S-535A-C132.00017.7939.79015.0959.4664.6946.407
GHDP-130S-585A-C132.00022.62712.80520.3789.4834.7056.426
GHDP-130S-635A-C132.00027.90516.09326.1489.5154.7256.460
GHDP-130S-385A-C232.000





GHDP-130S-435A-C232.0008.5203.2923.29711.7375.6347.387
GHDP-130S-485A-C232.00012.4435.8887.58611.7045.6127.351
GHDP-130S-535A-C232.00016.8348.67112.38611.7085.6157.356
GHDP-130S-585A-C232.00021.66811.70317.66911.7255.6267.374
GHDP-130S-635A-C232.00026.94615.00123.43911.7575.6467.409
GHDP-130S-685A-C232.00032.60418.52929.62311.7385.6347.388
GHDP-130S-485A-C532.00010.8935.0936.46312.6336.3748.884
GHDP-130S-535A-C532.00015.2847.87811.26312.6386.3778.889
GHDP-130S-585A-C532.00020.11710.90916.54612.6556.3888.908
GHDP-130S-635A-C532.00025.39514.20522.31512.6866.4088.942
GHDP-130S-685A-C532.00031.05317.73228.50012.6686.3968.922
GHDP-130S-735A-C532.000





GHDP-130S-535A-C632.00013.3605.5546.07316.9338.17310.792
GHDP-130S-585A-C632.00018.1948.70111.35716.9508.18410.810
GHDP-130S-635A-C632.00023.47212.04417.12616.9828.20410.845
GHDP-130S-685A-C632.00029.13015.59623.31116.9638.19210.824
GHDP-130S-735A-C632.000








Numéro de modèle
Couple max. Nm
7 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.0005.3491.6201.9712.0261.2242.378
GHDP-085C-335A-C29.0008.7212.9463.8392.0081.2112.340
GHDP-085C-385A-C29.000





GHDP-085C-435A-C29.000





GHDP-085C-335A-C39.0007.3232.0682.4063.2661.9593.738
GHDP-085C-385A-C39.000





GHDP-085C-435A-C39.000





GHDP-085C-335A-C59.0006.7631.8432.0963.5382.1604.298
GHDP-085C-385A-C59.000





GHDP-085C-435A-C59.000





GHDP-085C-385A-C69.000





GHDP-085C-435A-C69.000





GHDP-100C-385A-C118.00012.2683.1323.4185.4793.1145.171
GHDP-100C-435A-C118.000





GHDP-100C-485A-C118.000





GHDP-100C-385A-C218.00010.3132.3062.3356.4293.8217.125
GHDP-100C-435A-C218.000





GHDP-100C-485A-C218.000





GHDP-100C-535A-C218.000





GHDP-100C-585A-C218.000





GHDP-100C-535A-C318.000





GHDP-100C-585A-C318.000





GHDP-100C-535A-C418.000





GHDP-100C-585A-C418.000





GHDP-130C-435A-C132.00019.1435.7606.9828.1485.02410.216
GHDP-130C-485A-C132.00026.3398.59710.9688.1205.00410.159
GHDP-130C-535A-C132.00034.38111.75115.4238.1245.00710.167
GHDP-130C-585A-C132.000





GHDP-130C-635A-C132.000





GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.00017.6374.4204.76710.0926.08011.721
GHDP-130C-485A-C232.00024.8337.3188.75310.0646.05911.664
GHDP-130C-535A-C232.00032.87610.49613.20810.0686.06211.672
GHDP-130C-585A-C232.000





GHDP-130C-635A-C232.000





GHDP-130C-485A-C532.00022.3996.5937.88010.8306.75814.097
GHDP-130C-535A-C532.00030.4419.77012.33510.8346.76114.105
GHDP-130C-585A-C532.000





GHDP-130C-635A-C532.000





GHDP-130C-685A-C532.000





GHDP-130C-735A-C532.000





GHDP-130C-535A-C632.00027.4217.2548.09514.5568.80317.123
GHDP-130C-585A-C632.000





GHDP-130C-635A-C632.000





GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.000






Numéro de modèle
Couple max. Nm
7 BAR SYMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.0003.4061.7622.5312.3571.1361.498
GHDP-085S-335A-C29.0005.5543.1064.8792.3361.1231.475
GHDP-085S-385A-C29.0007.8544.5397.3922.3261.1161.464
GHDP-085S-435A-C29.000





GHDP-085S-335A-C39.0004.6632.2983.1143.7971.8112.356
GHDP-085S-385A-C39.0006.9633.7455.6273.7881.8052.345
GHDP-085S-435A-C39.0009.5875.3848.4963.7821.8012.340
GHDP-085S-335A-C59.0004.3072.0722.7244.1202.0162.708
GHDP-085S-385A-C59.0006.6063.5215.2374.1102.0102.698
GHDP-085S-435A-C59.0009.2305.1628.1064.1052.0072.692
GHDP-085S-385A-C69.0006.0553.0154.1365.0212.4383.243
GHDP-085S-435A-C69.0008.6794.6657.0055.0162.4353.238
GHDP-100S-385A-C118.0007.8133.5984.4796.3422.7833.259
GHDP-100S-435A-C118.00010.9365.5837.8936.3362.7793.252
GHDP-100S-485A-C118.000





GHDP-100S-535A-C118.000





GHDP-100S-585A-C118.000





GHDP-100S-385A-C218.0006.5672.7833.1187.4693.5124.490
GHDP-100S-435A-C218.0009.6904.7966.5327.4633.5084.483
GHDP-100S-485A-C218.00013.1766.99110.3427.4383.4924.456
GHDP-100S-535A-C218.00016.5578.57712.7717.4383.4924.456
GHDP-100S-585A-C218.000





GHDP-100S-535A-C318.00015.7777.93211.3609.1394.3865.400
GHDP-100S-585A-C318.000





GHDP-100S-535A-C418.00014.6077.25710.22610.3635.1516.750
GHDP-100S-585A-C418.000





GHDP-130S-435A-C132.00012.1916.2808.9719.4954.7126.439
GHDP-130S-485A-C132.00016.7749.15313.9819.4624.6916.403
GHDP-130S-535A-C132.00021.89612.35019.5809.4664.6946.407
GHDP-130S-585A-C132.00027.53315.86125.7409.4834.7056.426
GHDP-130S-635A-C132.00033.68519.69132.4669.5154.7256.460
GHDP-130S-385A-C232.0007.1261.8271.77411.7455.6397.396
GHDP-130S-435A-C232.00011.2325.1096.26211.7375.6347.387
GHDP-130S-485A-C232.00015.8158.02811.27211.7045.6127.351
GHDP-130S-535A-C232.00020.93711.24616.87111.7085.6157.356
GHDP-130S-585A-C232.00026.57414.76823.03211.7255.6267.374
GHDP-130S-635A-C232.00032.72618.60529.75711.7575.6467.409
GHDP-130S-685A-C232.00039.33022.71836.97511.7385.6347.388
GHDP-130S-485A-C532.00014.2657.23510.14912.6336.3748.884
GHDP-130S-535A-C532.00019.38710.45215.74812.6386.3778.889
GHDP-130S-585A-C532.00025.02313.97321.90812.6556.3888.908
GHDP-130S-635A-C532.00031.17617.80828.63412.6866.4088.942
GHDP-130S-685A-C532.000





GHDP-130S-735A-C532.000





GHDP-130S-535A-C632.00017.4638.23310.55816.9338.17310.792
GHDP-130S-585A-C632.00023.09911.80916.71916.9508.18410.810
GHDP-130S-635A-C632.00029.25215.67323.44416.9828.20410.845
GHDP-130S-685A-C632.000





GHDP-130S-735A-C632.000








Numéro de modèle
Couple max. Nm
8,5 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.0007.0412.2872.9092.0261.2242.378
GHDP-085C-335A-C29.000





GHDP-085C-385A-C29.000





GHDP-085C-435A-C29.000





GHDP-085C-335A-C39.000





GHDP-085C-385A-C39.000





GHDP-085C-435A-C39.000





GHDP-085C-335A-C59.000





GHDP-085C-385A-C59.000





GHDP-085C-435A-C59.000





GHDP-085C-385A-C69.000





GHDP-085C-435A-C69.000





GHDP-100C-385A-C118.000





GHDP-100C-435A-C118.000





GHDP-100C-485A-C118.000





GHDP-100C-385A-C218.000





GHDP-100C-435A-C218.000





GHDP-100C-485A-C218.000





GHDP-100C-535A-C218.000





GHDP-100C-585A-C218.000





GHDP-100C-535A-C318.000





GHDP-100C-585A-C318.000





GHDP-100C-535A-C418.000





GHDP-100C-585A-C418.000





GHDP-130C-435A-C132.00025.5318.28010.5218.1485.02410.216
GHDP-130C-485A-C132.00034.28111.71215.3678.1205.00410.159
GHDP-130C-535A-C132.000





GHDP-130C-585A-C132.000





GHDP-130C-635A-C132.000





GHDP-130C-385A-C232.00016.1953.8153.96810.0996.08511.735
GHDP-130C-435A-C232.00024.0266.9978.30610.0926.08011.721
GHDP-130C-485A-C232.00032.77510.45613.15210.0646.05911.664
GHDP-130C-535A-C232.000





GHDP-130C-585A-C232.000





GHDP-130C-635A-C232.000





GHDP-130C-485A-C532.00030.3409.73012.27910.8306.75814.097
GHDP-130C-535A-C532.000





GHDP-130C-585A-C532.000





GHDP-130C-635A-C532.000





GHDP-130C-685A-C532.000





GHDP-130C-735A-C532.000





GHDP-130C-535A-C632.000





GHDP-130C-585A-C632.000





GHDP-130C-635A-C632.000





GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.000






Numéro de modèle
Couple max. Nm
8,5 BAR SYMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.0004.4842.4383.7092.3571.1361.498
GHDP-085S-335A-C29.0007.0964.0676.5652.3361.1231.475
GHDP-085S-385A-C29.0009.8915.8079.6192.3261.1161.464
GHDP-085S-435A-C29.000





GHDP-085S-335A-C39.0006.2063.2704.7993.7971.8112.356
GHDP-085S-385A-C39.0009.0005.0187.8543.7881.8052.345
GHDP-085S-435A-C39.000





GHDP-085S-335A-C59.0005.8493.0464.4104.1202.0162.708
GHDP-085S-385A-C59.0008.6434.7957.4644.1102.0102.698
GHDP-085S-435A-C59.000





GHDP-085S-385A-C69.0008.0924.2976.3635.0212.4383.243
GHDP-085S-435A-C69.000





GHDP-100S-385A-C118.00010.2375.1427.1296.3422.7833.259
GHDP-100S-435A-C118.000





GHDP-100S-485A-C118.000





GHDP-100S-535A-C118.000





GHDP-100S-585A-C118.000





GHDP-100S-385A-C218.0008.9924.3535.7687.4693.5124.490
GHDP-100S-435A-C218.00012.7856.7469.9157.4633.5084.483
GHDP-100S-485A-C218.00016.5148.55312.7307.4633.5084.483
GHDP-100S-535A-C218.000





GHDP-100S-585A-C218.000





GHDP-100S-535A-C318.000





GHDP-100S-585A-C318.000





GHDP-100S-535A-C418.000





GHDP-100S-585A-C418.000





GHDP-130S-435A-C132.00016.2608.83113.4199.4954.7126.439
GHDP-130S-485A-C132.00021.83212.31019.5099.4624.6916.403
GHDP-130S-535A-C132.00028.05116.18426.3079.4664.6946.407
GHDP-130S-585A-C132.00034.89120.44133.7849.4834.7056.426
GHDP-130S-635A-C132.000





GHDP-130S-385A-C232.00010.3134.5105.25811.7455.6397.396
GHDP-130S-435A-C232.00015.3017.70410.71011.7375.6347.387
GHDP-130S-485A-C232.00020.87311.20616.80111.7045.6127.351
GHDP-130S-535A-C232.00027.09215.09223.59811.7085.6157.356
GHDP-130S-585A-C232.00033.93219.35631.07511.7255.6267.374
GHDP-130S-635A-C232.000





GHDP-130S-685A-C232.00049.42028.99748.00411.7385.6347.388
GHDP-130S-485A-C532.00019.32310.41215.67712.6336.3748.884
GHDP-130S-535A-C532.00025.54114.29622.47512.6386.3778.889
GHDP-130S-585A-C532.00032.38218.55929.95212.6556.3888.908
GHDP-130S-635A-C532.000





GHDP-130S-685A-C532.000





GHDP-130S-735A-C532.000





GHDP-130S-535A-C632.00023.61812.13617.28616.9338.17310.792
GHDP-130S-585A-C632.00030.45816.42924.76316.9508.18410.810
GHDP-130S-635A-C632.000





GHDP-130S-685A-C632.000





GHDP-130S-735A-C632.000







Simple effet normalement ouvert - Tableau couples (moments de torsion)

Numéro de modèle
Couple max. Nm
3 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.000





GHDP-085C-335A-O29.0003.8521.0211.1371.255530509
GHDP-085C-385A-O29.0003.8361.0151.1292.1071.2072.158
GHDP-085C-435A-O29.0003.8281.0121.1253.0831.9034.046
GHDP-085C-385A-O39.000





GHDP-085C-435A-O39.0006.2431.6331.8052.3071.1251.271
GHDP-085C-335A-O59.000





GHDP-085C-385A-O59.000





GHDP-085C-435A-O59.0006.7651.8392.0781.997715672
GHDP-085C-385A-O69.000





GHDP-085C-435A-O69.000





GHDP-085C-485A-O69.0008.2362.2112.4812.5991.0781.034
GHDP-100C-385A-O118.000





GHDP-100C-435A-O118.000





GHDP-100C-485A-O118.000





GHDP-100C-385A-O218.000





GHDP-100C-435A-O218.000





GHDP-100C-485A-O218.000





GHDP-100C-535A-O218.00012.2893.1503.4413.9931.2881.191
GHDP-100C-585A-O218.00012.3103.1583.4525.5972.9604.294
GHDP-100C-535A-O318.000





GHDP-100C-585A-O318.000





GHDP-100C-535A-O418.000





GHDP-100C-585A-O418.000





GHDP-130C-435A-O132.000





GHDP-130C-485A-O132.000





GHDP-130C-535A-O132.00015.5884.3254.9464.7692.2402.220
GHDP-130C-585A-O132.00015.6154.3364.9606.8793.8176.301
GHDP-130C-635A-O132.00015.6674.3564.9879.1885.48010.767
GHDP-130C-385A-O232.000





GHDP-130C-435A-O232.000





GHDP-130C-485A-O232.000





GHDP-130C-535A-O232.000





GHDP-130C-585A-O232.00019.3435.1175.6906.0472.1502.019
GHDP-130C-635A-O232.00019.3945.1375.7178.3564.4336.485
GHDP-130C-685A-O232.00019.3635.1255.70110.8086.21811.229
GHDP-130C-485A-O532.000





GHDP-130C-535A-O532.000





GHDP-130C-585A-O532.000





GHDP-130C-635A-O532.00020.8655.9446.9017.0063.5994.795
GHDP-130C-685A-O532.00020.8355.9326.8859.4595.3949.538
GHDP-130C-735A-O532.00020.8025.9196.86812.0977.28514.641
GHDP-130C-535A-O632.000





GHDP-130C-585A-O632.000





GHDP-130C-635A-O632.000





GHDP-130C-685A-O632.000





GHDP-130C-735A-O632.00027.9407.4578.33510.4255.2236.442

Numéro de modèle
Couple max. Nm
3 BAR SYMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.000





GHDP-085S-335A-O29.0002.3351.1221.4741.442394384
GHDP-085S-385A-O29.0002.3251.1161.4632.4221.1391.456
GHDP-085S-435A-O29.0002.3201.1131.4583.5441.8492.682
GHDP-085S-335A-O39.000





GHDP-085S-385A-O39.000





GHDP-085S-435A-O39.0003.7821.8012.3392.653924916
GHDP-085S-335A-O59.000





GHDP-085S-385A-O59.000





GHDP-085S-435A-O59.0004.1042.0072.6922.296545526
GHDP-085S-385A-O69.000





GHDP-085S-435A-O69.000





GHDP-100S-385A-O118.000





GHDP-100S-435A-O118.000





GHDP-100S-485A-O118.000





GHDP-100S-535A-O118.0006.3152.7643.2285.8342.2812.317
GHDP-100S-585A-O118.0006.3272.7733.2427.6793.5114.333
GHDP-100S-385A-O218.000





GHDP-100S-435A-O218.000





GHDP-100S-485A-O218.000





GHDP-100S-535A-O218.0007.4413.4954.4604.589998956
GHDP-100S-585A-O218.0007.4543.5034.4746.4342.6942.972
GHDP-100S-535A-O318.000





GHDP-100S-585A-O318.000





GHDP-100S-535A-O418.000





GHDP-100S-585A-O418.000





GHDP-130S-435A-O132.000





GHDP-130S-485A-O132.000





GHDP-130S-535A-O132.0009.4664.6946.4085.4841.6681.640
GHDP-130S-585A-O132.0009.4834.7056.4267.9093.5544.291
GHDP-130S-635A-O132.0009.5154.7256.46110.5645.2537.193
GHDP-130S-385A-O232.000





GHDP-130S-435A-O232.000





GHDP-130S-485A-O232.000





GHDP-130S-535A-O232.000





GHDP-130S-585A-O232.00011.7255.6267.3746.9501.6401.582
GHDP-130S-635A-O232.00011.7575.6467.4099.6054.0404.484
GHDP-130S-685A-O232.00011.7385.6347.38812.4255.8767.566
GHDP-130S-485A-O532.000





GHDP-130S-535A-O532.000





GHDP-130S-585A-O532.000





GHDP-130S-635A-O532.00012.6866.4088.9428.0553.2223.361
GHDP-130S-685A-O532.00012.6686.3968.92210.8745.0816.443
GHDP-130S-735A-O532.00012.6476.3838.89913.9077.0109.758
GHDP-130S-535A-O632.000





GHDP-130S-585A-O632.000





GHDP-130S-635A-O632.000





GHDP-130S-685A-O632.000





GHDP-130S-735A-O632.00016.9428.17910.80111.9844.5894.569



Numéro de modèle
Couple max. Nm
3,5 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.000





GHDP-085C-335A-O29.0003.8521.0211.1371.7029121.374
GHDP-085C-385A-O29.0003.8361.0151.1292.6981.6303.301
GHDP-085C-435A-O29.0003.8281.0121.1253.8372.4365.504
GHDP-085C-385A-O39.0006.2511.6371.8101.922577527
GHDP-085C-435A-O39.0006.2431.6331.8053.0611.6862.730
GHDP-085C-335A-O59.000





GHDP-085C-385A-O59.000





GHDP-085C-435A-O59.0006.7651.8392.0782.7511.4582.130
GHDP-085C-385A-O69.000





GHDP-085C-435A-O69.000





GHDP-085C-485A-O69.0008.2362.2112.4813.5361.8942.847
GHDP-100C-385A-O118.000





GHDP-100C-435A-O118.000





GHDP-100C-485A-O118.00010.4602.4102.4884.7372.3152.631
GHDP-100C-385A-O218.000





GHDP-100C-435A-O218.000





GHDP-100C-485A-O218.000





GHDP-100C-535A-O218.00012.2893.1503.4415.3502.7773.816
GHDP-100C-585A-O218.00012.3103.1583.4527.2204.1427.433
GHDP-100C-535A-O318.000





GHDP-100C-585A-O318.000





GHDP-100C-535A-O418.000





GHDP-100C-585A-O418.000





GHDP-130C-435A-O132.000





GHDP-130C-485A-O132.00015.5814.3234.9424.3241.4591.359
GHDP-130C-535A-O132.00015.5884.3254.9466.5543.5805.672
GHDP-130C-585A-O132.00015.6154.3364.9609.0125.35510.427
GHDP-130C-635A-O132.00015.6674.3564.98711.7027.26415.630
GHDP-130C-385A-O232.000





GHDP-130C-435A-O232.000





GHDP-130C-485A-O232.000





GHDP-130C-535A-O232.00019.3155.1065.6765.7211.5531.390
GHDP-130C-585A-O232.00019.3435.1175.6908.1804.3036.146
GHDP-130C-635A-O232.00019.3945.1375.71710.8696.26211.348
GHDP-130C-685A-O232.00019.3635.1255.70113.7338.31116.887
GHDP-130C-485A-O532.000





GHDP-130C-535A-O532.000





GHDP-130C-585A-O532.00020.8145.9246.8756.8313.4674.455
GHDP-130C-635A-O532.00020.8655.9446.9019.5205.4399.657
GHDP-130C-685A-O532.00020.8355.9326.88512.3847.48915.197
GHDP-130C-735A-O532.00020.8025.9196.86815.4649.67221.156
GHDP-130C-535A-O632.000





GHDP-130C-585A-O632.000





GHDP-130C-635A-O632.000





GHDP-130C-685A-O632.00027.9737.4708.35310.7125.4406.997
GHDP-130C-735A-O632.00027.9407.4578.33513.7937.70812.956

Numéro de modèle
Couple max. Nm
3,5 BAR SYMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.000





GHDP-085S-335A-O29.0002.3351.1221.4741.956836946
GHDP-085S-385A-O29.0002.3251.1161.4633.1011.5702.198
GHDP-085S-435A-O29.0002.3201.1131.4584.4112.3923.629
GHDP-085S-335A-O39.000





GHDP-085S-385A-O39.000





GHDP-085S-435A-O39.0003.7821.8012.3393.5191.5651.863
GHDP-085S-335A-O59.000





GHDP-085S-385A-O59.000





GHDP-085S-435A-O59.0004.1042.0072.6923.1631.3291.474
GHDP-085S-385A-O69.000





GHDP-085S-435A-O69.000





GHDP-100S-385A-O118.000





GHDP-100S-435A-O118.000





GHDP-100S-485A-O118.0006.3112.7623.2255.4451.9081.891
GHDP-100S-535A-O118.0006.3152.7643.2287.3943.3274.022
GHDP-100S-585A-O118.0006.3272.7733.2429.5444.7046.372
GHDP-100S-385A-O218.000





GHDP-100S-435A-O218.000





GHDP-100S-485A-O218.000





GHDP-100S-535A-O218.0007.4413.4954.4606.1492.5012.661
GHDP-100S-585A-O218.0007.4543.5034.4748.2993.9115.011
GHDP-100S-535A-O318.0008.7364.3865.4005.3782.0311.492
GHDP-100S-585A-O318.0008.7364.3865.4007.3173.1863.494
GHDP-100S-535A-O418.000





GHDP-100S-585A-O418.0009.9065.1516.7506.1832.5112.324
GHDP-130S-435A-O132.000





GHDP-130S-485A-O132.0009.4624.6926.4034.9721.1241.080
GHDP-130S-535A-O132.0009.4664.6946.4087.5353.3103.882
GHDP-130S-585A-O132.0009.4834.7056.42610.3625.1256.972
GHDP-130S-635A-O132.0009.5154.7256.46113.4547.07410.352
GHDP-130S-385A-O232.000





GHDP-130S-435A-O232.000





GHDP-130S-485A-O232.000





GHDP-130S-535A-O232.000





GHDP-130S-585A-O232.00011.7255.6267.3749.4033.9054.263
GHDP-130S-635A-O232.00011.7575.6467.40912.4955.9227.643
GHDP-130S-685A-O232.00011.7385.6347.38815.7888.01111.242
GHDP-130S-485A-O532.000





GHDP-130S-535A-O532.000





GHDP-130S-585A-O532.00012.6556.3888.9087.8533.0813.140
GHDP-130S-635A-O532.00012.6866.4088.94210.9455.1266.520
GHDP-130S-685A-O532.00012.6686.3968.92214.2377.21810.119
GHDP-130S-735A-O532.00012.6476.3838.89917.7799.44513.990
GHDP-130S-535A-O632.000





GHDP-130S-585A-O632.000





GHDP-130S-635A-O632.000





GHDP-130S-685A-O632.00016.9628.19210.82312.3144.8344.930
GHDP-130S-735A-O632.00016.9428.17910.80115.8567.1988.802



Numéro de modèle
Couple max. Nm
4 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.000





GHDP-085C-335A-O29.0003.8521.0211.1372.1491.2372.239
GHDP-085C-385A-O29.0003.8361.0151.1293.2882.0484.443
GHDP-085C-435A-O29.0003.8281.0121.1254.5912.9686.962
GHDP-085C-385A-O39.0006.2511.6371.8102.5131.2811.669
GHDP-085C-435A-O39.0006.2431.6331.8053.8152.2314.188
GHDP-085C-335A-O59.000





GHDP-085C-385A-O59.0006.7731.8422.0822.2021.0441.069
GHDP-085C-435A-O59.0006.7651.8392.0783.5052.0083.589
GHDP-085C-385A-O69.000





GHDP-085C-435A-O69.0008.2702.2252.4983.0251.5141.859
GHDP-085C-485A-O69.0008.2362.2112.4814.4732.5754.660
GHDP-100C-385A-O118.000





GHDP-100C-435A-O118.00010.5012.4272.5094.1291.5391.455
GHDP-100C-485A-O118.00010.4602.4102.4885.8533.1484.788
GHDP-100C-385A-O218.000





GHDP-100C-435A-O218.000





GHDP-100C-485A-O218.00012.2843.1483.4384.7702.3402.693
GHDP-100C-535A-O218.00012.2893.1503.4416.7073.7726.441
GHDP-100C-585A-O218.00012.3103.1583.4528.8435.30610.572
GHDP-100C-535A-O318.000





GHDP-100C-585A-O318.000





GHDP-100C-535A-O418.000





GHDP-100C-585A-O418.00016.3174.9285.2867.1543.8596.317
GHDP-130C-435A-O132.000





GHDP-130C-485A-O132.00015.5814.3234.9425.7913.0184.196
GHDP-130C-535A-O132.00015.5884.3254.9468.3384.8719.123
GHDP-130C-585A-O132.00015.6154.3364.96011.1466.87014.554
GHDP-130C-635A-O132.00015.6674.3564.98714.2169.04120.492
GHDP-130C-385A-O232.000





GHDP-130C-435A-O232.000





GHDP-130C-485A-O232.000





GHDP-130C-535A-O232.00019.3155.1065.6767.5063.8004.842
GHDP-130C-585A-O232.00019.3435.1175.69010.3145.86110.273
GHDP-130C-635A-O232.00019.3945.1375.71713.3838.06216.210
GHDP-130C-685A-O232.00019.3635.1255.70116.65910.38422.546
GHDP-130C-485A-O532.000





GHDP-130C-535A-O532.00020.7875.9136.8606.1562.9533.151
GHDP-130C-585A-O532.00020.8145.9246.8758.9645.0368.582
GHDP-130C-635A-O532.00020.8655.9446.90112.0347.24014.520
GHDP-130C-685A-O532.00020.8355.9326.88515.3099.56220.855
GHDP-130C-735A-O532.00020.8025.9196.86818.83212.05127.671
GHDP-130C-535A-O632.000





GHDP-130C-585A-O632.000





GHDP-130C-635A-O632.00028.0037.4828.36910.3625.1766.320
GHDP-130C-685A-O632.00027.9737.4708.35313.6377.59512.656
GHDP-130C-735A-O632.00027.9407.4578.33517.16110.13519.471

Numéro de modèle
Couple max. Nm
4 BAR SYMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.000





GHDP-085S-335A-O29.0002.3351.1221.4742.4701.1701.508
GHDP-085S-385A-O29.0002.3251.1161.4633.7801.9972.940
GHDP-085S-435A-O29.0002.3201.1131.4585.2782.9344.577
GHDP-085S-335A-O39.000





GHDP-085S-385A-O39.0003.7871.8042.3452.8891.1421.174
GHDP-085S-435A-O39.0003.7821.8012.3394.3862.1222.811
GHDP-085S-335A-O59.000





GHDP-085S-385A-O59.0004.1102.0102.6972.532796784
GHDP-085S-435A-O59.0004.1042.0072.6924.0301.8952.421
GHDP-085S-385A-O69.000





GHDP-085S-435A-O69.0005.0152.4343.2373.4791.3271.321
GHDP-100S-385A-O118.000





GHDP-100S-435A-O118.0006.3362.7793.2524.7461.1651.127
GHDP-100S-485A-O118.0006.3112.7623.2256.7272.8893.293
GHDP-100S-535A-O118.0006.3152.7643.2288.9554.3295.728
GHDP-100S-585A-O118.0006.3272.7733.24211.4105.8828.411
GHDP-100S-385A-O218.000





GHDP-100S-435A-O218.000





GHDP-100S-485A-O218.0007.4383.4924.4565.4821.9481.932
GHDP-100S-535A-O218.0007.4413.4954.4607.7103.5314.367
GHDP-100S-585A-O218.0007.4543.5034.47410.1655.0977.050
GHDP-100S-535A-O318.0008.7364.3865.4006.7942.8742.954
GHDP-100S-585A-O318.0008.7364.3865.4009.0114.1935.241
GHDP-100S-535A-O418.0009.9065.1516.7505.6602.1991.784
GHDP-100S-585A-O418.0009.9065.1516.7507.8773.5184.071
GHDP-130S-435A-O132.000





GHDP-130S-485A-O132.0009.4624.6926.4036.6582.7252.923
GHDP-130S-535A-O132.0009.4664.6946.4089.5874.6326.125
GHDP-130S-585A-O132.0009.4834.7056.42612.8156.6729.653
GHDP-130S-635A-O132.0009.5154.7256.46116.3448.88413.511
GHDP-130S-385A-O232.000





GHDP-130S-435A-O232.000





GHDP-130S-485A-O232.000





GHDP-130S-535A-O232.00011.7085.6157.3568.6283.3703.416
GHDP-130S-585A-O232.00011.7255.6267.37411.8565.5126.945
GHDP-130S-635A-O232.00011.7575.6467.40915.3867.75810.802
GHDP-130S-685A-O232.00011.7385.6347.38819.15110.12714.918
GHDP-130S-485A-O532.000





GHDP-130S-535A-O532.00012.6386.3778.8897.0772.3222.293
GHDP-130S-585A-O532.00012.6556.3888.90810.3054.7145.821
GHDP-130S-635A-O532.00012.6866.4088.94213.8356.9649.679
GHDP-130S-685A-O532.00012.6686.3968.92217.6009.33313.795
GHDP-130S-735A-O532.00012.6476.3838.89921.65111.86818.223
GHDP-130S-535A-O632.000





GHDP-130S-585A-O632.000





GHDP-130S-635A-O632.00016.9818.20410.84411.9124.5124.490
GHDP-130S-685A-O632.00016.9628.19210.82315.6777.0828.606
GHDP-130S-735A-O632.00016.9428.17910.80119.7289.67813.034


Numéro de modèle
Couple max. Nm
4,5 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.000





GHDP-085C-335A-O29.0003.8871.0351.1552.4791.5132890
GHDP-085C-385A-O29.0003.8521.0211.1373.6192.3244904
GHDP-085C-435A-O29.0003.8361.0151.1294.9173.2487197
GHDP-085C-385A-O39.0003.8281.0121.1253.0361.7172716
GHDP-085C-435A-O39.0006.2511.6371.8104.3352.6405010
GHDP-085C-335A-O59.000





GHDP-085C-385A-O59.0006.7891.8482.0902.8121.5582321
GHDP-085C-435A-O59.0006.7731.8422.0824.1112.4814614
GHDP-085C-385A-O69.000





GHDP-085C-435A-O69.0008.2782.2282.5033.6561.9842803
GHDP-085C-485A-O69.0008.2702.2252.4985.1133.0205376
GHDP-100C-385A-O118.000





GHDP-100C-435A-O118.00010.5112.4312.5145.1362.6463572
GHDP-100C-485A-O118.00010.5012.4272.5096.9973.9306852
GHDP-100C-385A-O218.000





GHDP-100C-435A-O218.000





GHDP-100C-485A-O218.00012.3243.1643.4596.0813.2985238
GHDP-100C-535A-O218.00012.3243.1643.4598.1444.7228874
GHDP-100C-585A-O218.00012.3243.1643.45910.4096.28512866
GHDP-100C-535A-O318.00014.3904.1724.2287.4574.0686850
GHDP-100C-585A-O318.00014.3904.1724.2289.7225.63210843
GHDP-100C-535A-O418.00016.3174.9285.2866.4273.3575.035
GHDP-100C-585A-O418.00016.3174.9285.2868.6924.9219.027
GHDP-130C-435A-O132.000





GHDP-130C-485A-O132.000





GHDP-130C-535A-O132.000





GHDP-130C-585A-O132.000





GHDP-130C-635A-O132.000





GHDP-130C-385A-O232.000





GHDP-130C-435A-O232.000





GHDP-130C-485A-O232.000





GHDP-130C-535A-O232.000





GHDP-130C-585A-O232.000





GHDP-130C-635A-O232.000





GHDP-130C-685A-O232.000





GHDP-130C-485A-O532.000





GHDP-130C-535A-O532.000





GHDP-130C-585A-O532.000





GHDP-130C-635A-O532.000





GHDP-130C-685A-O532.000





GHDP-130C-735A-O532.000





GHDP-130C-535A-O632.000





GHDP-130C-585A-O632.000





GHDP-130C-635A-O632.000





GHDP-130C-685A-O632.000





GHDP-130C-735A-O632.000






Numéro de modèle
Couple max. Nm
4,5 BAR SYMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.0002.3561.1361.4971.682715741
GHDP-085S-335A-O29.0002.3351.1221.4742.9631.4772062
GHDP-085S-385A-O29.0002.3251.1161.4634.3262.2883468
GHDP-085S-435A-O29.0002.3201.1131.4585.8773.2125070
GHDP-085S-335A-O39.0003.7971.8102.3552.267839571
GHDP-085S-385A-O39.0003.7871.8042.3453.6291.6501977
GHDP-085S-435A-O39.0003.7821.8012.3395.1812.5743578
GHDP-085S-335A-O59.0004.1192.0162.7081.999680294
GHDP-085S-385A-O59.0004.1102.0102.6973.3621.4911700
GHDP-085S-435A-O59.0004.1042.0072.6924.9142.4153302
GHDP-085S-385A-O69.0005.0212.4383.2432.819973466
GHDP-085S-435A-O69.0005.0152.4343.2374.3711.8972067
GHDP-100S-385A-O118.0006.3422.7833.2593.8291.304570
GHDP-100S-435A-O118.0006.3362.7793.2525.6552.3912454
GHDP-100S-485A-O118.0006.3112.7623.2257.7033.6104568
GHDP-100S-535A-O118.0006.3152.7643.2289.9744.9626911
GHDP-100S-585A-O118.0006.3152.7643.22812.4686.4469484
GHDP-100S-385A-O218.000





GHDP-100S-435A-O218.0007.4633.5084.4834.6471.7911414
GHDP-100S-485A-O218.0007.4383.4924.4566.6953.0103528
GHDP-100S-535A-O218.0007.4413.4954.4608.9664.3625871
GHDP-100S-585A-O218.0007.4543.5034.47411.4605.8468444
GHDP-100S-535A-O318.0008.7364.3865.4008.2103.7174415
GHDP-100S-585A-O318.0008.7364.3865.40010.7045.2016988
GHDP-100S-535A-O418.0009.9065.1516.7507.0763.0423.245
GHDP-100S-585A-O418.0009.9065.1516.7509.5704.5265.818
GHDP-130S-435A-O132.000





GHDP-130S-485A-O132.000





GHDP-130S-535A-O132.000





GHDP-130S-585A-O132.000





GHDP-130S-635A-O132.000





GHDP-130S-385A-O232.000





GHDP-130S-435A-O232.000





GHDP-130S-485A-O232.000





GHDP-130S-535A-O232.000





GHDP-130S-585A-O232.000





GHDP-130S-635A-O232.000





GHDP-130S-685A-O232.000





GHDP-130S-485A-O532.000





GHDP-130S-535A-O532.000





GHDP-130S-585A-O532.000





GHDP-130S-635A-O532.000





GHDP-130S-685A-O532.000





GHDP-130S-735A-O532.000





GHDP-130S-535A-O632.000





GHDP-130S-585A-O632.000





GHDP-130S-635A-O632.000





GHDP-130S-685A-O632.000





GHDP-130S-735A-O632.000








Numéro de modèle
Couple max. Nm
5 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.0003.8871.0351.1551.7149211.399
GHDP-085C-335A-O29.0003.8521.0211.1373.0431.8753.969
GHDP-085C-385A-O29.0003.8361.0151.1294.4692.8836.728
GHDP-085C-435A-O29.000





GHDP-085C-385A-O39.0006.2511.6371.8103.6942.1443.954
GHDP-085C-435A-O39.0006.2431.6331.8055.3233.3047.105
GHDP-085C-335A-O59.000





GHDP-085C-385A-O59.0006.7731.8422.0823.3841.9203.354
GHDP-085C-435A-O59.0006.7651.8392.0785.0133.0846.505
GHDP-085C-385A-O69.000





GHDP-085C-435A-O69.0008.2702.2252.4984.5332.6184.776
GHDP-085C-485A-O69.0008.2362.2112.4816.3483.9128.286
GHDP-100C-385A-O118.000





GHDP-100C-435A-O118.00010.5012.4272.5095.9243.2014.926
GHDP-100C-485A-O118.00010.4602.4102.4888.0834.7639.103
GHDP-100C-385A-O218.000





GHDP-100C-435A-O218.000





GHDP-100C-485A-O218.00012.2843.1483.4387.0003.9847.008
GHDP-100C-535A-O218.00012.2893.1503.4419.4225.71711.692
GHDP-100C-585A-O218.00012.3103.1583.45211.9477.34715.577
GHDP-100C-535A-O318.00014.3904.1724.2288.7444.9569.118
GHDP-100C-585A-O318.00014.3904.1724.22811.2606.69313.554
GHDP-100C-535A-O418.00016.3174.9285.2867.7144.2457.302
GHDP-100C-585A-O418.00016.3174.9285.28610.2305.98211.738
GHDP-130C-435A-O132.00015.6344.3434.9705.8843.0884.377
GHDP-130C-485A-O132.00015.5814.3234.9428.7245.1489.869
GHDP-130C-535A-O132.00015.5884.3254.94611.9077.40916.027
GHDP-130C-585A-O132.00015.6154.3364.96015.4139.88522.808
GHDP-130C-635A-O132.00015.6674.3564.98719.24312.58530.217
GHDP-130C-385A-O232.000





GHDP-130C-435A-O232.000





GHDP-130C-485A-O232.00019.3085.1035.6727.8914.0895.587
GHDP-130C-535A-O232.00019.3155.1065.67611.0756.41011.745
GHDP-130C-585A-O232.00019.3435.1175.69014.5818.91218.526
GHDP-130C-635A-O232.00019.3945.1375.71718.41111.62325.936
GHDP-130C-685A-O232.00019.3635.1255.70122.50914.51533.863
GHDP-130C-485A-O532.00020.7805.9116.8576.5423.2493.897
GHDP-130C-535A-O532.00020.7875.9136.8609.7255.58610.054
GHDP-130C-585A-O532.00020.8145.9246.87513.2318.09116.836
GHDP-130C-635A-O532.00020.8655.9446.90117.06110.80124.245
GHDP-130C-685A-O532.00020.8355.9326.88521.16013.69232.172
GHDP-130C-735A-O532.000





GHDP-130C-535A-O632.00027.9257.4518.3288.0532.0911.854
GHDP-130C-585A-O632.00027.9527.4628.34211.5596.0728.636
GHDP-130C-635A-O632.00028.0037.4828.36915.3908.86216.045
GHDP-130C-685A-O632.00027.9737.4708.35319.48811.79423.972
GHDP-130C-735A-O632.00027.9407.4578.33523.89614.91932.500

Numéro de modèle
Couple max. Nm
5 BAR SYMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.0002.3561.1361.4971.971845962
GHDP-085S-335A-O29.0002.3351.1221.4743.4991.8202.632
GHDP-085S-385A-O29.0002.3251.1161.4635.1382.8474.425
GHDP-085S-435A-O29.0002.3201.1131.4587.0114.0146.472
GHDP-085S-335A-O39.0003.7971.8102.3552.607876866
GHDP-085S-385A-O39.0003.7871.8042.3454.2472.0332.659
GHDP-085S-435A-O39.0003.7821.8012.3396.1203.2174.706
GHDP-085S-335A-O59.0004.1192.0162.7082.251497477
GHDP-085S-385A-O59.0004.1102.0102.6973.8901.8052.269
GHDP-085S-435A-O59.0004.1042.0072.6925.7642.9934.316
GHDP-085S-385A-O69.0005.0212.4383.2433.3391.1781.168
GHDP-085S-435A-O69.0005.0152.4343.2375.2122.4793.216
GHDP-100S-385A-O118.0006.3422.7833.2594.580988946
GHDP-100S-435A-O118.0006.3362.7793.2526.8092.9443.382
GHDP-100S-485A-O118.0006.3112.7623.2259.2924.5446.096
GHDP-100S-535A-O118.0006.3152.7643.22812.0766.3019.139
GHDP-100S-585A-O118.0006.3152.7643.22814.1617.45411.231
GHDP-100S-385A-O218.000





GHDP-100S-435A-O218.0007.4633.5084.4835.5642.0352.021
GHDP-100S-485A-O218.0007.4383.4924.4568.0473.7484.735
GHDP-100S-535A-O218.0007.4413.4954.46010.8315.5177.778
GHDP-100S-585A-O218.0007.4543.5034.47413.8967.44311.129
GHDP-100S-535A-O318.0008.7364.3865.4009.6264.5605.876
GHDP-100S-585A-O318.0008.7364.3865.40012.3976.2098.735
GHDP-100S-535A-O418.0009.9065.1516.7508.4923.8854.706
GHDP-100S-585A-O418.0009.9065.1516.75011.2635.5347.565
GHDP-130S-435A-O132.0009.4954.7126.4396.7662.7983.041
GHDP-130S-485A-O132.0009.4624.6926.40310.0304.9146.609
GHDP-130S-535A-O132.0009.4664.6946.40813.6907.22210.610
GHDP-130S-585A-O132.0009.4834.7056.42617.7219.74415.015
GHDP-130S-635A-O132.0009.5154.7256.46122.12412.49219.829
GHDP-130S-385A-O232.000





GHDP-130S-435A-O232.000





GHDP-130S-485A-O232.00011.7045.6127.3519.0713.6793.901
GHDP-130S-535A-O232.00011.7085.6157.35612.7316.0737.901
GHDP-130S-585A-O232.00011.7255.6267.37416.7628.62612.307
GHDP-130S-635A-O232.00011.7575.6467.40921.16611.38917.121
GHDP-130S-685A-O232.00011.7385.6347.38825.87814.33422.271
GHDP-130S-485A-O532.00012.6336.3748.8847.5212.7942.777
GHDP-130S-535A-O532.00012.6386.3778.88911.1815.2776.778
GHDP-130S-585A-O532.00012.6556.3888.90815.2117.83211.184
GHDP-130S-635A-O532.00012.6866.4088.94219.61510.59515.997
GHDP-130S-685A-O532.00012.6686.3968.92224.32713.53921.147
GHDP-130S-735A-O532.00012.6476.3838.89929.39516.70026.688
GHDP-130S-535A-O632.000





GHDP-130S-585A-O632.00016.9508.18410.81013.2885.5065.995
GHDP-130S-635A-O632.00016.9818.20410.84417.6928.38010.809
GHDP-130S-685A-O632.00016.9628.19210.82322.40411.37015.959
GHDP-130S-735A-O632.00016.9428.17910.80127.47214.55721.499



Numéro de modèle
Couple max. Nm
5,5 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.0003.8871.0351.1552.0271.1492.003
GHDP-085C-335A-O29.0003.8521.0211.1373.4902.1914.834
GHDP-085C-385A-O29.0003.8361.0151.1295.0603.2997.870
GHDP-085C-435A-O29.000





GHDP-085C-385A-O39.0006.2511.6371.8104.2842.5675.096
GHDP-085C-435A-O39.000





GHDP-085C-335A-O59.0006.7891.8482.0902.4051.2001.460
GHDP-085C-385A-O59.0006.7731.8422.0823.9742.3454.497
GHDP-085C-435A-O59.0006.7651.8392.0785.7673.6187.964
GHDP-085C-385A-O69.0008.2782.2282.5033.4951.8642.767
GHDP-085C-435A-O69.0008.2702.2252.4985.2873.1596.235
GHDP-085C-485A-O69.000





GHDP-100C-385A-O118.00010.5112.4312.5144.6882.2772.536
GHDP-100C-435A-O118.00010.5012.4272.5096.8213.8546.662
GHDP-100C-485A-O118.00010.4602.4102.4889.1995.55911.261
GHDP-100C-385A-O218.000





GHDP-100C-435A-O218.00012.3243.1643.4595.7383.0644.567
GHDP-100C-485A-O218.00012.2843.1483.4388.1164.7869.166
GHDP-100C-535A-O218.00012.2423.4763.52410.7176.49813.408
GHDP-100C-585A-O218.000





GHDP-100C-535A-O318.00014.3904.1724.22810.0305.84411.385
GHDP-100C-585A-O318.00014.3904.1724.22812.7987.75516.265
GHDP-100C-535A-O418.00016.3174.9285.2869.0005.1339.570
GHDP-100C-585A-O418.00016.3174.9285.28611.7687.04414.449
GHDP-130C-435A-O132.00015.6344.3434.9707.0643.9516.659
GHDP-130C-485A-O132.00015.5814.3234.94210.1906.19212.706
GHDP-130C-535A-O132.00015.5884.3254.94613.6918.67119.478
GHDP-130C-585A-O132.00015.6154.3364.96017.54611.39026.935
GHDP-130C-635A-O132.000





GHDP-130C-385A-O232.000





GHDP-130C-435A-O232.00019.3615.1245.7006.2322.4912.377
GHDP-130C-485A-O232.00019.3085.1035.6729.3585.1678.424
GHDP-130C-535A-O232.00019.3155.1065.67612.8597.68915.196
GHDP-130C-585A-O232.00019.3435.1175.69016.71410.42322.653
GHDP-130C-635A-O232.00019.3945.1375.71720.92513.39730.798
GHDP-130C-685A-O232.000





GHDP-130C-485A-O532.00020.7805.9116.8578.0084.3406.733
GHDP-130C-535A-O532.00020.7875.9136.86011.5106.86713.506
GHDP-130C-585A-O532.00020.8145.9246.87515.3659.60220.963
GHDP-130C-635A-O532.00020.8655.9446.90119.57512.57529.108
GHDP-130C-685A-O532.000





GHDP-130C-735A-O532.000





GHDP-130C-535A-O632.00027.9257.4518.3289.8384.7755.306
GHDP-130C-585A-O632.00027.9527.4628.34213.6937.63512.763
GHDP-130C-635A-O632.00028.0037.4828.36917.90410.66720.908
GHDP-130C-685A-O632.00027.9737.4708.35322.41313.86929.631
GHDP-130C-735A-O632.000






Numéro de modèle
Couple max. Nm
5,5 BAR SYMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.0002.3561.1361.4972.3301.0791.355
GHDP-085S-335A-O29.0002.3351.1221.4744.0132.1433.194
GHDP-085S-385A-O29.0002.3251.1161.4635.8173.2705.167
GHDP-085S-435A-O29.0002.3201.1131.4587.8784.5547.420
GHDP-085S-335A-O39.0003.7971.8102.3553.1211.3011.428
GHDP-085S-385A-O39.0003.7871.8042.3454.9262.4653.401
GHDP-085S-435A-O39.0003.7821.8012.3396.9873.7605.654
GHDP-085S-335A-O59.0004.1192.0162.7082.7651.0441.038
GHDP-085S-385A-O59.0004.1102.0102.6974.5692.2393.011
GHDP-085S-435A-O59.0004.1042.0072.6926.6303.5375.264
GHDP-085S-385A-O69.0005.0212.4383.2434.0181.7041.911
GHDP-085S-435A-O69.0005.0152.4343.2376.0793.0314.163
GHDP-100S-385A-O118.0006.3422.7833.2595.3881.8481.829
GHDP-100S-435A-O118.0006.3362.7793.2527.8413.6164.510
GHDP-100S-485A-O118.0006.3112.7623.22510.5745.3557.498
GHDP-100S-535A-O118.0006.3152.7643.22813.6367.28010.844
GHDP-100S-585A-O118.0006.3152.7643.22815.8558.46212.978
GHDP-100S-385A-O218.000





GHDP-100S-435A-O218.0007.4633.5084.4836.5962.8023.149
GHDP-100S-485A-O218.0007.4383.4924.4569.3294.5676.137
GHDP-100S-535A-O218.0007.4413.4954.46012.3916.4999.484
GHDP-100S-585A-O218.0007.4413.4954.46014.8477.86211.938
GHDP-100S-535A-O318.0008.7364.3865.40011.0435.4037.337
GHDP-100S-585A-O318.0008.7364.3865.40014.0917.21710.482
GHDP-100S-535A-O418.0009.9065.1516.7509.9094.7286.167
GHDP-100S-585A-O418.0009.9065.1516.75012.9576.5429.312
GHDP-130S-435A-O132.0009.4954.7126.4398.1223.6924.524
GHDP-130S-485A-O132.0009.4624.6926.40311.7165.9808.452
GHDP-130S-535A-O132.0009.4664.6946.40815.7418.50712.852
GHDP-130S-585A-O132.0009.4834.7056.42620.17411.27517.697
GHDP-130S-635A-O132.0009.5154.7256.46125.01514.29322.988
GHDP-130S-385A-O232.000





GHDP-130S-435A-O232.00011.7375.6337.3877.1631.8671.815
GHDP-130S-485A-O232.00011.7045.6127.35110.7574.8005.743
GHDP-130S-535A-O232.00011.7085.6157.35614.7837.37610.144
GHDP-130S-585A-O232.00011.7255.6267.37419.21510.16714.988
GHDP-130S-635A-O232.00011.7575.6467.40924.05613.19620.280
GHDP-130S-685A-O232.00011.7385.6347.38829.24116.43225.947
GHDP-130S-485A-O532.00012.6336.3748.8849.2073.9984.620
GHDP-130S-535A-O532.00012.6386.3778.88913.2326.5839.020
GHDP-130S-585A-O532.00012.6556.3888.90817.6649.37313.865
GHDP-130S-635A-O532.00012.6866.4088.94222.50512.40219.156
GHDP-130S-685A-O532.00012.6686.3968.92227.69015.63724.824
GHDP-130S-735A-O532.00012.6476.3838.89933.26819.11130.920
GHDP-130S-535A-O632.00016.9338.17310.79111.3093.8713.832
GHDP-130S-585A-O632.00016.9508.18410.81015.7417.1248.676
GHDP-130S-635A-O632.00016.9818.20410.84420.58210.21913.968
GHDP-130S-685A-O632.00016.9628.19210.82325.76713.48719.635
GHDP-130S-735A-O632.00016.9428.17910.80131.34416.98325.732


Numéro de modèle
Couple max. Nm
6 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.0003.8871.0351.1552.3391.3742.607
GHDP-085C-335A-O29.0003.8521.0211.1373.9382.5075.699
GHDP-085C-385A-O29.000





GHDP-085C-435A-O29.000





GHDP-085C-385A-O39.0006.2511.6371.8104.8752.9866.239
GHDP-085C-435A-O39.000





GHDP-085C-335A-O59.0006.7891.8482.0902.8521.5332.325
GHDP-085C-385A-O59.0006.7731.8422.0824.5652.7665.639
GHDP-085C-435A-O59.000





GHDP-085C-385A-O69.0008.2782.2282.5034.0852.2953.910
GHDP-085C-435A-O69.0008.2702.2252.4986.0413.6957.693
GHDP-085C-485A-O69.000





GHDP-100C-385A-O118.00010.5112.4312.5145.3912.8073.895
GHDP-100C-435A-O118.00010.5012.4272.5097.7184.5018.397
GHDP-100C-485A-O118.00010.4602.4102.48810.3146.35013.418
GHDP-100C-385A-O218.00012.3343.1683.4644.3081.8671.800
GHDP-100C-435A-O218.00012.3243.1643.4596.6363.7206.303
GHDP-100C-485A-O218.00012.2843.1483.4389.2315.58211.323
GHDP-100C-535A-O218.00012.2423.4763.52412.0037.38615.676
GHDP-100C-585A-O218.000





GHDP-100C-535A-O318.00014.3904.1724.22811.3166.73213.653
GHDP-100C-585A-O318.000





GHDP-100C-535A-O418.00016.3174.9285.28610.2866.02111.837
GHDP-100C-585A-O418.00016.3174.9285.28613.3068.10617.160
GHDP-130C-435A-O132.00015.6344.3434.9708.2444.8038.941
GHDP-130C-485A-O132.00015.5814.3234.94211.6567.23215.542
GHDP-130C-535A-O132.00015.5884.3254.94615.4769.93022.930
GHDP-130C-585A-O132.00015.6154.3364.96019.68012.89231.062
GHDP-130C-635A-O132.000





GHDP-130C-385A-O232.000





GHDP-130C-435A-O232.00019.3615.1245.7007.4123.7294.659
GHDP-130C-485A-O232.00019.3085.1035.67210.8246.22911.260
GHDP-130C-535A-O232.00019.3155.1065.67614.6438.95618.648
GHDP-130C-585A-O232.00019.3435.1175.69018.84811.93226.780
GHDP-130C-635A-O232.000





GHDP-130C-685A-O232.000





GHDP-130C-485A-O532.00020.7805.9116.8579.4755.4069.570
GHDP-130C-535A-O532.00020.7875.9136.86013.2948.13516.957
GHDP-130C-585A-O532.00020.8145.9246.87517.49811.11025.090
GHDP-130C-635A-O532.00020.8655.9446.90122.08914.34733.970
GHDP-130C-685A-O532.000





GHDP-130C-735A-O532.000





GHDP-130C-535A-O632.00027.9257.4518.32811.6226.1198.758
GHDP-130C-585A-O632.00027.9527.4628.34215.8269.17716.890
GHDP-130C-635A-O632.00028.0037.4828.36920.41712.45425.770
GHDP-130C-685A-O632.000





GHDP-130C-735A-O632.000






Numéro de modèle
Couple max. Nm
6 BAR SYMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.0002.3561.1361.4972.6891.3091.747
GHDP-085S-335A-O29.0002.3351.1221.4744.5272.4653.756
GHDP-085S-385A-O29.0002.3251.1161.4636.4963.6945.909
GHDP-085S-435A-O29.0002.3201.1131.4588.7455.0948.367
GHDP-085S-335A-O39.0003.7971.8102.3553.6361.6401.990
GHDP-085S-385A-O39.0003.7871.8042.3455.6052.8934.143
GHDP-085S-435A-O39.0003.7821.8012.3397.8544.3026.601
GHDP-085S-335A-O59.0004.1192.0162.7083.2791.4061.600
GHDP-085S-385A-O59.0004.1102.0102.6975.2492.6683.753
GHDP-085S-435A-O59.0004.1042.0072.6927.4974.0796.211
GHDP-085S-385A-O69.0005.0212.4383.2434.6972.1492.653
GHDP-085S-435A-O69.0005.0152.4343.2376.9463.5785.111
GHDP-100S-385A-O118.0006.3422.7833.2596.1962.5332.713
GHDP-100S-435A-O118.0006.3362.7793.2528.8724.2775.638
GHDP-100S-485A-O118.0006.3112.7623.22511.8576.1638.899
GHDP-100S-535A-O118.000





GHDP-100S-585A-O118.000





GHDP-100S-385A-O218.0007.4693.5124.4904.9511.3831.352
GHDP-100S-435A-O218.0007.4633.5084.4837.6273.4784.277
GHDP-100S-485A-O218.0007.4383.4924.45610.6125.3797.539
GHDP-100S-535A-O218.0007.4413.4954.46013.9517.47711.189
GHDP-100S-585A-O218.0007.4413.4954.46016.5408.87013.685
GHDP-100S-535A-O318.0008.7364.3865.40012.4596.2468.798
GHDP-100S-585A-O318.0008.7364.3865.40015.7848.22512.229
GHDP-100S-535A-O418.0009.9065.1516.75011.3255.5717.628
GHDP-100S-585A-O418.0009.9065.1516.75014.6507.55011.059
GHDP-130S-435A-O132.0009.4954.7126.4399.4784.5636.006
GHDP-130S-485A-O132.0009.4624.6926.40313.4027.04110.295
GHDP-130S-535A-O132.0009.4664.6946.40817.7939.78915.094
GHDP-130S-585A-O132.0009.4834.7056.42622.62612.80520.378
GHDP-130S-635A-O132.0009.5154.7256.46127.90516.09326.147
GHDP-130S-385A-O232.000





GHDP-130S-435A-O232.00011.7375.6337.3878.5203.2923.298
GHDP-130S-485A-O232.00011.7045.6127.35112.4435.8887.586
GHDP-130S-535A-O232.00011.7085.6157.35616.8348.67112.386
GHDP-130S-585A-O232.00011.7255.6267.37421.66811.70417.669
GHDP-130S-635A-O232.00011.7575.6467.40926.94615.00123.439
GHDP-130S-685A-O232.00011.7385.6347.38832.60418.52929.623
GHDP-130S-485A-O532.00012.6336.3748.88410.8935.0936.463
GHDP-130S-535A-O532.00012.6386.3778.88915.2847.87811.263
GHDP-130S-585A-O532.00012.6556.3888.90820.11710.90916.546
GHDP-130S-635A-O532.00012.6866.4088.94225.39514.20522.316
GHDP-130S-685A-O532.00012.6686.3968.92231.05317.73228.500
GHDP-130S-735A-O532.000





GHDP-130S-535A-O632.00016.9338.17310.79113.3605.5556.074
GHDP-130S-585A-O632.00016.9508.18410.81018.1948.70111.357
GHDP-130S-635A-O632.00016.9818.20410.84423.47212.04517.127
GHDP-130S-685A-O632.00016.9628.19210.82329.13015.59623.311
GHDP-130S-735A-O632.000








Numéro de modèle
Couple max. Nm
7 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.0003.8871.0351.1552.9641.8193.816
GHDP-085C-335A-O29.0003.8521.0211.1374.8323.1387.429
GHDP-085C-385A-O29.000





GHDP-085C-435A-O29.000





GHDP-085C-385A-O39.0006.2511.6371.8106.0563.8228.524
GHDP-085C-435A-O39.000





GHDP-085C-335A-O59.0006.7891.8482.0903.7462.1814.055
GHDP-085C-385A-O59.0006.7731.8422.0825.7463.6037.924
GHDP-085C-435A-O59.000





GHDP-085C-385A-O69.0008.2782.2282.5035.2673.1446.195
GHDP-085C-435A-O69.000





GHDP-085C-485A-O69.000





GHDP-100C-385A-O118.00010.5112.4312.5146.7973.8366.614
GHDP-100C-435A-O118.00010.5012.4272.5099.5135.78211.869
GHDP-100C-485A-O118.000





GHDP-100C-385A-O218.00012.3343.1683.4645.7143.0464.519
GHDP-100C-435A-O218.00012.3243.1643.4598.4305.0129.774
GHDP-100C-485A-O218.000





GHDP-100C-535A-O218.000





GHDP-100C-585A-O218.000





GHDP-100C-535A-O318.000





GHDP-100C-585A-O318.000





GHDP-100C-535A-O418.00016.3174.9285.28612.8597.79716.372
GHDP-100C-585A-O418.000





GHDP-130C-435A-O132.00015.6344.3434.97010.6036.48513.505
GHDP-130C-485A-O132.00015.5814.3234.94214.5899.30521.215
GHDP-130C-535A-O132.00015.5884.3254.94619.04512.44529.833
GHDP-130C-585A-O132.000





GHDP-130C-635A-O132.000





GHDP-130C-385A-O232.00019.3755.1295.7076.2002.4312.315
GHDP-130C-435A-O232.00019.3615.1245.7009.7715.4689.223
GHDP-130C-485A-O232.00019.3085.1035.67213.7578.32816.934
GHDP-130C-535A-O232.00019.3155.1065.67618.21211.48325.551
GHDP-130C-585A-O232.000





GHDP-130C-635A-O232.000





GHDP-130C-685A-O232.000





GHDP-130C-485A-O532.00020.7805.9116.85712.4087.50615.243
GHDP-130C-535A-O532.00020.7875.9136.86016.86310.66123.861
GHDP-130C-585A-O532.00020.8145.9246.87521.76514.11933.344
GHDP-130C-635A-O532.000





GHDP-130C-685A-O532.000





GHDP-130C-735A-O532.000





GHDP-130C-535A-O632.00027.9257.4518.32815.1918.71915.661
GHDP-130C-585A-O632.00027.9527.4628.34220.09312.22425.144
GHDP-130C-635A-O632.000





GHDP-130C-685A-O632.000





GHDP-130C-735A-O632.000






Numéro de modèle
Couple max. Nm
7 BAR SYMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.0002.3561.1361.4973.4071.7632.533
GHDP-085S-335A-O29.0002.3351.1221.4745.5553.1074.880
GHDP-085S-385A-O29.0002.3251.1161.4637.8554.5397.394
GHDP-085S-435A-O29.000





GHDP-085S-335A-O39.0003.7971.8102.3554.6642.2993.114
GHDP-085S-385A-O39.0003.7871.8042.3456.9633.7455.628
GHDP-085S-435A-O39.0003.7821.8012.3399.5885.3848.496
GHDP-085S-335A-O59.0004.1192.0162.7084.3072.0722.724
GHDP-085S-385A-O59.0004.1102.0102.6976.6073.5225.238
GHDP-085S-435A-O59.0004.1042.0072.6929.2315.1628.106
GHDP-085S-385A-O69.0005.0212.4383.2436.0553.0164.137
GHDP-085S-435A-O69.0005.0152.4343.2378.6804.6667.006
GHDP-100S-385A-O118.0006.3422.7833.2597.8133.5984.479
GHDP-100S-435A-O118.0006.3362.7793.25210.9365.5837.893
GHDP-100S-485A-O118.000





GHDP-100S-535A-O118.000





GHDP-100S-585A-O118.000





GHDP-100S-385A-O218.0007.4693.5124.4906.5672.7833.118
GHDP-100S-435A-O218.0007.4633.5084.4839.6904.7966.532
GHDP-100S-485A-O218.0007.4383.4924.45613.1766.99110.342
GHDP-100S-535A-O218.000





GHDP-100S-585A-O218.000





GHDP-100S-535A-O318.0008.7364.3865.40015.2917.93211.721
GHDP-100S-585A-O318.000





GHDP-100S-535A-O418.0009.9065.1516.75014.1577.25710.551
GHDP-100S-585A-O418.000





GHDP-130S-435A-O132.0009.4954.7126.43912.1916.2808.971
GHDP-130S-485A-O132.0009.4624.6926.40316.7749.15213.981
GHDP-130S-535A-O132.0009.4664.6946.40821.89612.35019.579
GHDP-130S-585A-O132.0009.4834.7056.42627.53215.86125.740
GHDP-130S-635A-O132.0009.5154.7256.46133.68519.69132.466
GHDP-130S-385A-O232.00011.7455.6397.3967.1261.8271.775
GHDP-130S-435A-O232.00011.7375.6337.38711.2325.1096.263
GHDP-130S-485A-O232.00011.7045.6127.35115.8158.02911.272
GHDP-130S-535A-O232.00011.7085.6157.35620.93711.24616.871
GHDP-130S-585A-O232.00011.7255.6267.37426.57414.76923.032
GHDP-130S-635A-O232.00011.7575.6467.40932.72718.60629.757
GHDP-130S-685A-O232.00011.7385.6347.38839.33022.71836.976
GHDP-130S-485A-O532.00012.6336.3748.88414.2657.23610.149
GHDP-130S-535A-O532.00012.6386.3778.88919.38710.45215.748
GHDP-130S-585A-O532.00012.6556.3888.90825.02313.97321.908
GHDP-130S-635A-O532.00012.6866.4088.94231.17617.80828.634
GHDP-130S-685A-O532.000





GHDP-130S-735A-O532.000





GHDP-130S-535A-O632.00016.9338.17310.79117.4648.23410.559
GHDP-130S-585A-O632.00016.9508.18410.81023.10011.81016.720
GHDP-130S-635A-O632.00016.9818.20410.84429.25315.67323.445
GHDP-130S-685A-O632.000





GHDP-130S-735A-O632.000








Numéro de modèle
Couple max. Nm
8,5 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.0003.8871.0351.1553.9012.4825.629
GHDP-085C-335A-O29.000





GHDP-085C-385A-O29.000





GHDP-085C-435A-O29.000





GHDP-085C-385A-O39.000





GHDP-085C-435A-O39.000





GHDP-085C-335A-O59.0006.7891.8482.0905.0883.1376.650
GHDP-085C-385A-O59.000





GHDP-085C-435A-O59.000





GHDP-085C-385A-O69.000





GHDP-085C-435A-O69.000





GHDP-085C-485A-O69.000





GHDP-100C-385A-O118.00010.5112.4312.5148.9055.35010.693
GHDP-100C-435A-O118.000





GHDP-100C-485A-O118.000





GHDP-100C-385A-O218.00012.3343.1683.4647.8224.5768.598
GHDP-100C-435A-O218.000





GHDP-100C-485A-O218.000





GHDP-100C-535A-O218.000





GHDP-100C-585A-O218.000





GHDP-100C-535A-O318.000





GHDP-100C-585A-O318.000





GHDP-100C-535A-O418.000





GHDP-100C-585A-O418.000





GHDP-130C-435A-O132.00015.6344.3434.97014.1428.98920.350
GHDP-130C-485A-O132.00015.5814.3234.94218.98912.40629.725
GHDP-130C-535A-O132.000





GHDP-130C-585A-O132.000





GHDP-130C-635A-O132.000





GHDP-130C-385A-O232.00019.3755.1295.7078.9724.8857.677
GHDP-130C-435A-O232.00019.3615.1245.70013.3108.00916.069
GHDP-130C-485A-O232.00019.3085.1035.67218.15611.44325.443
GHDP-130C-535A-O232.000





GHDP-130C-585A-O232.000





GHDP-130C-635A-O232.000





GHDP-130C-685A-O232.000





GHDP-130C-485A-O532.00020.7805.9116.85716.80710.62123.753
GHDP-130C-535A-O532.00020.7875.9136.86022.21614.43734.216
GHDP-130C-585A-O532.000





GHDP-130C-635A-O532.000





GHDP-130C-685A-O532.000





GHDP-130C-735A-O532.000





GHDP-130C-535A-O632.00027.9257.4518.32820.54412.54426.016
GHDP-130C-585A-O632.000





GHDP-130C-635A-O632.000





GHDP-130C-685A-O632.000





GHDP-130C-735A-O632.000






Numéro de modèle
Couple max. Nm
8,5 BAR SYMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.0002.3561.1361.4974.4852.4393.710
GHDP-085S-335A-O29.0002.3351.1221.4747.0984.0686.566
GHDP-085S-385A-O29.0002.3251.1161.4639.8925.8079.620
GHDP-085S-435A-O29.000





GHDP-085S-335A-O39.0003.7971.8102.3556.2063.2714.800
GHDP-085S-385A-O39.0003.7871.8042.3459.0005.0187.854
GHDP-085S-435A-O39.000





GHDP-085S-335A-O59.0004.1192.0162.7085.8503.0474.410
GHDP-085S-385A-O59.0004.1102.0102.6978.6444.7967.465
GHDP-085S-435A-O59.000





GHDP-085S-385A-O69.0005.0212.4383.2438.0934.2986.364
GHDP-085S-435A-O69.000





GHDP-100S-385A-O118.0006.3422.7833.25910.2375.1427.129
GHDP-100S-435A-O118.000





GHDP-100S-485A-O118.000





GHDP-100S-535A-O118.000





GHDP-100S-585A-O118.000





GHDP-100S-385A-O218.0007.4693.5124.4908.9924.3535.768
GHDP-100S-435A-O218.0007.4633.5084.48312.7856.7469.915
GHDP-100S-485A-O218.000





GHDP-100S-535A-O218.000





GHDP-100S-585A-O218.000





GHDP-100S-535A-O318.000





GHDP-100S-585A-O318.000





GHDP-100S-535A-O418.000





GHDP-100S-585A-O418.000





GHDP-130S-435A-O132.0009.4954.7126.43916.2608.83113.419
GHDP-130S-485A-O132.0009.4624.6926.40321.83212.31019.509
GHDP-130S-535A-O132.0009.4664.6946.40828.05116.18326.307
GHDP-130S-585A-O132.0009.4834.7056.42634.89120.44133.784
GHDP-130S-635A-O132.000





GHDP-130S-385A-O232.00011.7455.6397.39610.3144.5105.258
GHDP-130S-435A-O232.00011.7375.6337.38715.3017.70410.710
GHDP-130S-485A-O232.00011.7045.6127.35120.87311.20616.801
GHDP-130S-535A-O232.00011.7085.6157.35627.09215.09223.598
GHDP-130S-585A-O232.00011.7255.6267.37433.93319.35731.075
GHDP-130S-635A-O232.000





GHDP-130S-685A-O232.00011.7385.6347.38849.42028.99748.004
GHDP-130S-485A-O532.00012.6336.3748.88419.32310.41215.677
GHDP-130S-535A-O532.00012.6386.3778.88925.54114.29622.475
GHDP-130S-585A-O532.00012.6556.3888.90832.38218.55929.952
GHDP-130S-635A-O532.000





GHDP-130S-685A-O532.000





GHDP-130S-735A-O532.000





GHDP-130S-535A-O632.00016.9338.17310.79123.61812.13717.286
GHDP-130S-585A-O632.00016.9508.18410.81030.45916.42924.763
GHDP-130S-635A-O632.000





GHDP-130S-685A-O632.000





GHDP-130S-735A-O632.000







CYCLE DE PEINTURE ACTUATECH
La peinture des actionneurs Heavy Duty (Standard ACTUATECH), indiquée dans le tableau, permet leur installation à l’extérieur: sites de produits chimiques, gazoducs, raffineries et applications off-shore. Peintures disponibles sur demande selon les spécifications du client.

PRÉPARATION DE LA SURFACE
 SABLAGE DEGRÉ SA 2.1/2
Revêtement  Type de peinture  ÉPAISSEUR
Première couche
Galvanisant inorganique
75 µ
Couche intermédiaire
Epoxy110 µ
Dernière couche
Polyuréthane
40 µ



ÉPAISSEUR TOTALE

225 µ
Peinture standard: RAL

CORPS CENTRAL - CONFIGURATIONS DISPONIBLES

Conception dissymétrique (canted)
Couple de démarrage d'ouverture (BTO) très élevé, avec une forte baisse de la valeur du couple délivré dans la phase finale (ETO) de la manœuvre d'ouverture. Couple de démarrage de fermeture (BTC) nettement inférieur au couple d'ouverture (BTO).

Conception symétrique
Courbe de couple plus équilibrée, les valeurs de BTO-ETO BTC-ETC sont similaires.

Pour plus d’informations, veuillez consulter le catalogue des accessoires ACTUATECH.

Pompe
Vérin hydraulique
Réservoir d'huile
Clapet anti-retour
Vanne de sécurité

COMMANDE HYDRAULIQUE MANUELLE D'URGENCE

COMMANDE MANUELLE D'URGENCE POUVANT ETRE DÉSACTIVÉE POUR ACTIONNEUR À SIMPLE EFFET

Connecteur - Manchon

L'actionneur a été conçu de manière à prévoir des raccords conformes aux normes internationales les plus récentes pour permettre et faciliter son montage sur les vannes et les accessoires. Actuatech complète son offre avec des kits de montage, des connecteurs et des manchons sur demande.

Construction modulaire

La conception modulaire des actionneurs HEAVY DUTY ACTUATECH garantit des utilisations complètement polyvalentes.
La construction modulaire permet d'assembler les composants en fonction des exigences d’utilisation.
